EGA 2

Earthing set for cable joints type CHMSV3…
for connection of polymeric insulated cables with tape screen
Art. no.
420577
Inquiry
Add to Wish List

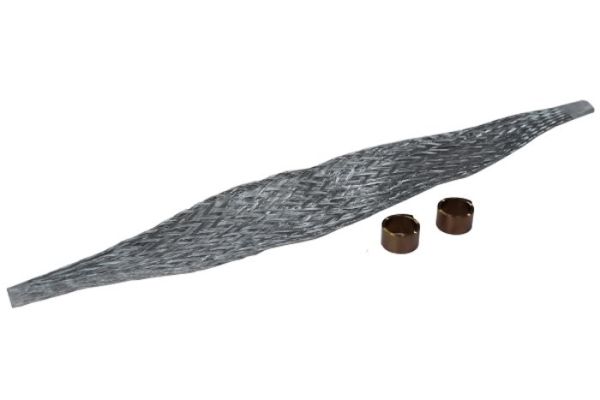

main product photo
More Information
Product family EGA-M
Main description Earthing set for cable joints type CHMSV3…
Sub description for connection of polymeric insulated cables with tape screen
Family description EGA earthing set for cable joints CHMSV3 & CHMSV3-1 is suitable for connection of three core cables with copper or aluminum tape screen. Kit components: 3 copper braided tubes and 6 pressure springs.
Notes The earthing set must be selected according to the nominal cross section of the selected joint.
Characteristics Quick, safe and easy assembly, Superior electrical properties, High mechanical strength
Applications Earthing continuity and earth bonding, For cable joints type CHMSV3 & CHMSV3-1, Enables solder-free electrical connection of metal cable components (screen, armouring, metal sheath)
Technical data
More Information
Length Copper braided tube 500 mm
Nominal cross section Copper braided tube 35 mm²
Pressure spring type RF3
Nominal cross section 17,5 kV min 70 mm²
Nominal cross section 17,5 kV max 150 mm²
Nominal cross section 24 kV min 50 mm²
Nominal cross section 24 kV max 150 mm²
Nominal cross section 36 kV min 50 mm²
Nominal cross section 36 kV max 150 mm²
Logistic data
More Information
Delivery scope 1 Set for 3 phases: Copper braid tubes, pressure springs RF
Country of origin Germany
Customs tariff number 74130000
EAN/GTIN 4010311191591
Packaging type Piece Bag1
Content quantity 1 1
Unit of measure Piece Piece
Lenght (mm) 299 299
Width (mm) 187 187
Height (mm) 37 37
Net weight (kg) 0,681 0,681
Gross weight (kg) 0,681 0,681
