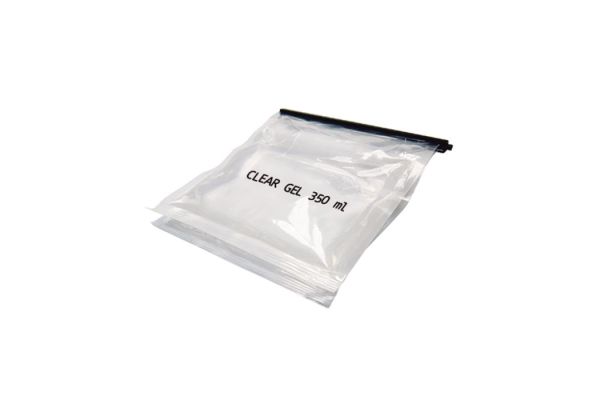

CLEAR GEL 350
Two-component gel based on silicon
to protect electrical components and LEDs
Art. no.
364034
| Product family | CLEAR GEL |
|---|---|
| Main description | Two-component gel based on silicon |
| Sub description | to protect electrical components and LEDs |
| Family description | Sealing, high-transparent two-component sealing compound for a reliable protection to electrical components. Suitable for opto-electronic applications like e.g. sealing of LEDs and lighting installations. |
| Characteristics | Permanently high transparent, Favourable flow properties, Application-oriented variants, Non-labelled and non-toxic, Vibration damping, Removable, Flexible, Halogen-free, UV rays stable, Seals and protects all electrical installations |
| Applications | Indoor areas (also with high humidity levels), Outdoor, Branch and connection boxes, Protection against moisture (IP 68 protection class in a suitable box), For electrical systems up to 1 kV |
| Content | 350 ml |
|---|---|
| Viscosity (23 °C) | 1000 mPas |
| Viscosity (associated standard) | ISO 2555 |
| Processing time (pot life) (23 °C) | 15 minutes |
| Processing time (pot life) (23 °C) (associated standard) | IEC 60684-2 |
| Density | 0,97 g/cm³ |
| Mixing ratio | 1 : 1 |
| Working temperature min | 15 °C |
| Working temperature max | 30 °C |
| Heat resistance min | -40 °C |
| Heat resistance max | 150 °C |
| Specific volume resistivity | ≥ 2 x 10¹⁴ Ω cm |
| Specific volume resistivity (associated standard) | HD 429 |
| Dielectric strength | ≥ 15 kV/mm |
| Dielectric strength (associated standard) | IEC 60243-1 |
| Delivery scope | CLEAR GEL component A and component B in two-chamber bags | ||
|---|---|---|---|
| Shelf life | 24 Month | ||
| Storage temperatur min | 0 °C | ||
| Storage temperatur max | 40 °C | ||
| Country of origin | China | ||
| Customs tariff number | 39100000 | ||
| EAN/GTIN | 4010311177632 | ||
| Packaging type | Piece | Case | Pal. OW |
| Content quantity | 1 | 1 | 240 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 228 | 228 | 1200 |
| Width (mm) | 185 | 185 | 800 |
| Height (mm) | 33 | 33 | 550 |
| Net weight (kg) | 0,404 | 0,404 | 96,96 |
| Gross weight (kg) | 0,404 | 0,404 | 96,96 |
