T 2 GG

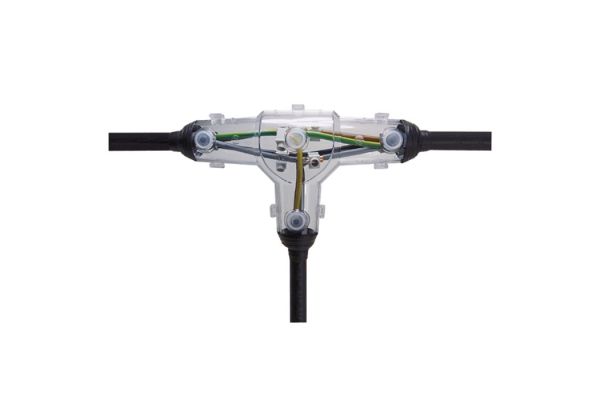

Cast resin branch joint
for polymeric cables
Art. no.
353847
More Information
Product family T...GG
Main description Cast resin branch joint
Sub description for polymeric cables
Family description Universally suitable for branching polymeric cables or conductors insulated with PVC, PE, XLPE and EPR (e.g. N(A)YY, NYM, TT) with or without concentric conductor. With hydrolysis resistance PUR cast resin GG. Suitable for branch clamps on copper and aluminium conductors
Optional accessory Screw branch clamp AK (see Connecting technology), Cleaner UNIVERSAL CLEANER 121 (see Accessories), Branch clamp KP (see Connecting technology), Split bolt clamp FK (see Connecting technology)
Characteristics Compact dimensions, High-quality transparent shockproof plastic shell, Resistant to chemical agents, Stabilized against UV rays, Resistant to alkaline earth elements, Longitudinally and transversely watertight, High electrical insulating values, High mechanical strength, Ready for immediate operation, Quick, safe and easy assembly, Large filler aperture to facilitate casting
Applications Indoor, Outdoor, Underground, Water, Installation ducts
More Information
Voltage levels U0/U (Um) 0,6/1 (1,2) kV
Test standards EN 50393
Length L 267 mm
Width B 154 mm
Heigth H 70 mm
Diameter D 60 mm
Nominal cross section Main cable Polymeric cable unarmoured per conductor 3x max 25 mm²
Nominal cross section Branch cable Polymeric cable unarmoured per conductor 3x max 25 mm²
Nominal cross section Main cable Polymeric cable unarmoured per conductor 4x max 16 mm²
Nominal cross section Branch cable Polymeric cable unarmoured per conductor 4x max 10 mm²
Nominal cross section Main cable Polymeric cable unarmoured per conductor 5x max 10 mm²
Nominal cross section Branch cable Polymeric cable unarmoured per conductor 5x max 10 mm²
Nominal cross section Main cable Polymeric cable with concentric conductor per conductor 3x max 16 mm²
Nominal cross section Main cable Polymeric cable with concentric conductor per conductor 4x max 16 mm²
Nominal cross section Branch cable Polymeric cable with concentric conductor per conductor 4x max 16 mm²
Diameter cable max 30 mm
More Information
Delivery scope Fill and air-release funnel, Hydrolysis resistance PUR cast resin GG, Packed in practical and easy-to-use two-chamber bags, Transparent plastic shell, PVC insulation tape, Protective gloves, Assembly instructions
Shelf life 24 Month
Country of origin Germany
Customs tariff number 39095090
EAN/GTIN 4010311171180
Packaging type Piece Case Pal. OW
Content quantity 1 1 120
Unit of measure Piece Piece Piece
Lenght (mm) 306 306 1200
Width (mm) 210 210 800
Height (mm) 95 95 1130
Net weight (kg) 1,387 1,387 166,44
Gross weight (kg) 1,387 1,387 184,64
