P 5 GG

Cast resin branch joint
with strain relief for polymeric cables and mass-impreg. paper cables
Art. no.
329567
Inquiry
Add to Wish List

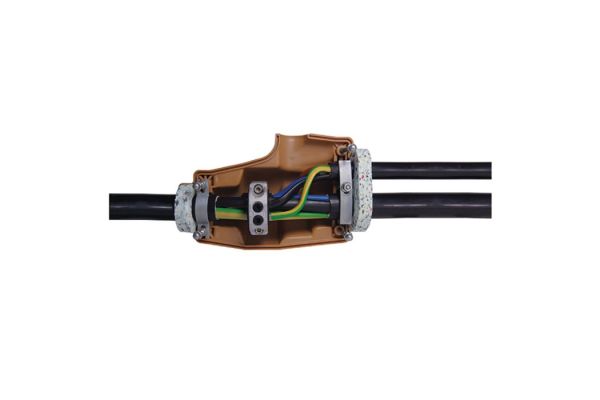

main product photo
More Information
Product family P...GG
Main description Cast resin branch joint
Sub description with strain relief for polymeric cables and mass-impreg. paper cables
Family description Universally suitable for branching polymeric cables insulated with PVC, PE, XLPE and paper (e.g. N(A)YY, N(A)KBA, GN-CLN, TT) with or without concentric conductor and mass-impregnated paper cables. With hydrolysis resistance PUR cast resin GG. Suitable for branch clamps on copper and aluminium conductors.
Optional accessory For size 2…4 branch clamp KP (see Connecting technology), For size 5…7 branch clamp HE 1/70/150 (see Connecting technology), Cleaner UNIVERSAL CLEANER 121 (see Accessories)
Characteristics Compact design, Integrated strain relief, High-quality brown shockproof plastic shell, Resistant to chemical agents, Stabilized against UV rays, Resistant to alkaline earth elements, Longitudinally and transversely watertight, High electrical insulating values, High mechanical strength, Ready for immediate operation, Quick, safe and easy assembly, Large filler aperture to facilitate casting, Integrated strain relief
Applications Indoor, Outdoor, Underground, Water, Installation ducts
Technical data
More Information
Voltage levels U0/U (Um) 0,6/1 (1,2) kV
Test standards EN 50393
Length L 325 mm
Heigth H 200 mm
Diameter D 135 mm
Diameter cable Main cable min 37 mm
Diameter cable Main cable max 54 mm
Diameter cable Branch cable min 20 mm
Diameter cable Branch cable max 36 mm
Nominal cross section Main cable Polymeric cable unarmoured per conductor 4x min 95 mm²
Nominal cross section Main cable Polymeric cable unarmoured per conductor 4x max 150 mm²
Nominal cross section Branch cable Polymeric cable unarmoured per conductor 4x min 16 mm²
Nominal cross section Branch cable Polymeric cable unarmoured per conductor 4x max 50 mm²
Logistic data
More Information
Delivery scope Sealing gaskets, Hydrolysis resistance PUR cast resin GG, Packed in practical and easy-to-use two-chamber bags, Plastic shell with integrated strain relief, Hexagon head screws and nuts, Assembly instructions
Shelf life 24 Month
Country of origin Germany
Customs tariff number 39095090
EAN/GTIN 4010311162676
Packaging type Piece Case Pal. EU
Content quantity 1 1 33
Unit of measure Piece Piece Piece
Lenght (mm) 357 357 1200
Width (mm) 207 207 800
Height (mm) 319 319 1130
Net weight (kg) 4,981 4,981 164,373
Gross weight (kg) 4,981 4,981 193,373
