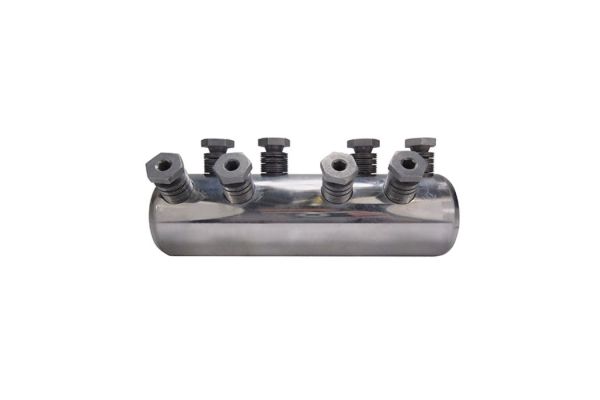

SV-V-AS 630-1000
Screw connector for Cu and Al
longitudinally sealed with separator, with shear head bolts
Art. no.
309606
| Product family | SV-V-AS |
|---|---|
| Main description | Screw connector for Cu and Al |
| Sub description | longitudinally sealed with separator, with shear head bolts |
| Family description | For connecting various conductor types and materials, ideal for connecting identical and different conductor cross-sections. |
| Nominal cross section RM min | 630 mm² |
|---|---|
| Nominal cross section RM max | 1000 mm² |
| Country of origin | Germany | ||
|---|---|---|---|
| Customs tariff number | 85369010 | ||
| EAN/GTIN | 4010311158372 | ||
| Packaging type | Piece | Bag1 | Carton |
| Content quantity | 1 | 1 | 2 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 220 | 220 | 300 |
| Width (mm) | 65 | 65 | 150 |
| Height (mm) | 75 | 75 | 95 |
| Net weight (kg) | 1,837 | 1,837 | 3,674 |
| Gross weight (kg) | 1,837 | 1,837 | 3,974 |
