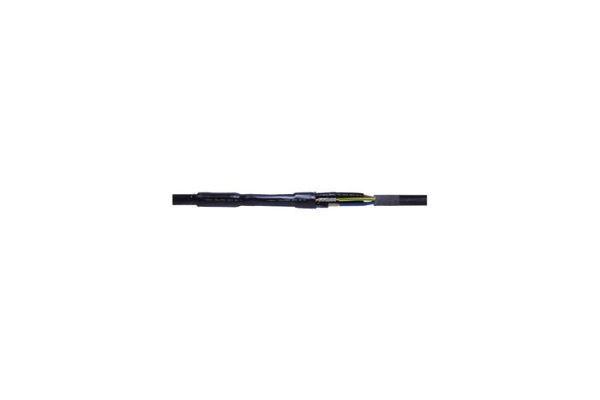

SMH5D 6-16
Heat shrinkable straight-through joint
for unarmoured polymeric cables
Art. no.
203883
| Product family | SMH...D |
|---|---|
| Main description | Heat shrinkable straight-through joint |
| Sub description | for unarmoured polymeric cables |
| Family description | Universal applications to connect low voltage 4-core plastic insulated cables or conductors insulated with PVC, PE and XLPE. Suitable for compression connectors on aluminium or copper cables. |
| Optional accessory | Compression connectors (see Connecting technology) |
| Characteristics | Compact dimensions, Wide conductor and cross-section range, Resistant to chemical agents, Resistant to alkaline earth elements, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Halogen-free, Transversely waterproof, High electrical insulating values, High mechanical strength |
| Applications | Indoor, Outdoor, Underground, Water, Installation ducts, Ductwork |
| Voltage levels | U0/U (Um) 0,6/1 (1,2) kV |
|---|---|
| Test standards | DIN VDE 0278-1, DIN VDE 0278-3 |
| Length L1 | 460 mm |
| Nominal cross section Polymeric cable unarmoured per conductor 5x min | 6 mm² |
| Nominal cross section Polymeric cable unarmoured per conductor 5x max | 16 mm² |
| Delivery scope | Inner sleeves, Outer sleeve, Cleaning tissue, Emery cloth, Assembly instructions | |
|---|---|---|
| Shelf life description | Unlimited shelf life | |
| Country of origin | Germany | |
| Customs tariff number | 39173900 | |
| EAN/GTIN | 4010311116853 | |
| Packaging type | Piece | Bag1 |
| Content quantity | 1 | 1 |
| Unit of measure | Piece | Piece |
| Lenght (mm) | 471 | 471 |
| Width (mm) | 99 | 99 |
| Height (mm) | 77 | 77 |
| Net weight (kg) | 0,173 | 0,173 |
| Gross weight (kg) | 0,173 | 0,173 |
