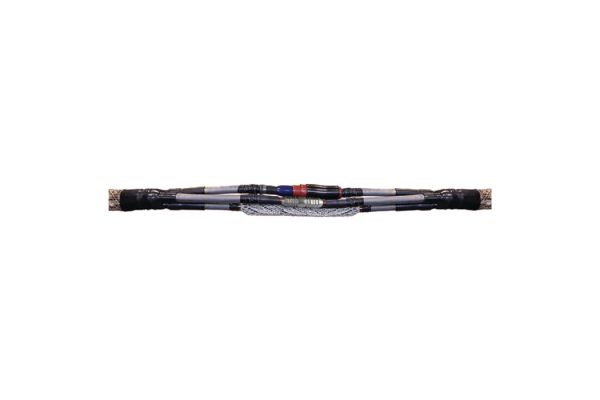

CHMPP(3Pb)3 24kV 16-25
Straight-through joint
for 3 lead sheath cables up to 36 kV
Art. no.
197671
| Product family | CHMPP(3Pb)3 |
|---|---|
| Main description | Straight-through joint |
| Sub description | for 3 lead sheath cables up to 36 kV |
| Family description | Hybrid straight-through joints CHMPP(3Pb)3 are suitable for all 3 lead sheath cables up to 36 kV. Suitable for compression connectors. |
| Optional accessory | Compression connectors (see Connecting technology) |
| Characteristics | Wide cross-section range, Quick, safe and easy assembly, Ready for immediate operation |
| Applications | Indoor, Outdoor, Underground, Water, Installation ducts, Ductwork |
| Voltage levels | U0/U (Um) 12/20 (24) kV - 12,7/22 (24) kV |
|---|---|
| Test standards | DIN VDE 0278-629-2 |
| Diameter Connector 24kV max | 20 mm |
| Length Connector 24kV max | 100 mm |
| Length L | 1400 mm |
| Diameter over core insulation after removal of the outer conductive layer min | 12,6 mm |
| Nominal cross section 24 kV min | 16 mm² |
| Nominal cross section 24 kV max | 25 mm² |
| Delivery scope | Spreader cap, Thick wall heat shrinkable outer tube with hot melt adhesive, Oil barrier tubing, Silicone field control elements, Earthing wire, Heat shrinkable tubes, Copper braid tape, Assembly material, Pressure spring, Field control filling tape (blue), Sealing tape, Fire protection wrapping, Assembly instructions | ||
|---|---|---|---|
| Shelf life description | Unlimited shelf life | ||
| Country of origin | Germany | ||
| Customs tariff number | 39269097 | ||
| EAN/GTIN | 4010311052083 | ||
| Packaging type | Piece | Carton | Pal. OW |
| Content quantity | 1 | 1 | 6 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 1283 | 1283 | 1200 |
| Width (mm) | 363 | 363 | 800 |
| Height (mm) | 366 | 366 | 1480 |
| Net weight (kg) | 6,319 | 6,319 | 37,914 |
| Gross weight (kg) | 6,319 | 6,319 | 56,114 |
