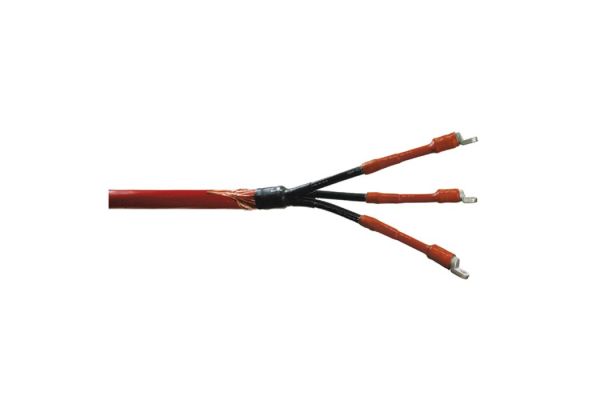

CHE-3I(A) 24kV 120-300

3-core indoor cable termination
for 3-core polymeric cables
Art. no.
146297
More Information
Product family CHE-3I(A)
Main description 3-core indoor cable termination
Sub description for 3-core polymeric cables
Family description Hybrid cable terminations CHE-3I(A) are suitable for all 3-core polymeric-insulated cables (PVC, PE, XLPE, EPR) with different types of semi-conductive layers (graphitecoated, removable or strippable) and screen design (copper wire or tape). Suitable for compression or screw cable lugs.
Notes Can be used also for cables Um = 7,2 kV, then the minimum diameter over conductor insulation has to be checked., Other cable terminations available on request.
Optional accessory EGA earthing kit for cables with tape screen (see Connecting technology), Cable lugs (see Connecting technology)
Characteristics Flexible silicone stress control elements ensure reliable stress control under all operating conditions, Combination of slip-on and heat shrinkable components, Wide cross-section range, Quick, safe and easy assembly, Ready for immediate operation
Applications Indoor
More Information
Voltage levels U0/U (Um) 12/20 (24) kV - 12,7/22 (24) kV
Test standards CENELEC HD 629.1
Length L 300 mm
Diameter over core insulation after removal of the outer conductive layer min 23,1 mm
Number of sheds per phase 1 Pieces
Diameter shed 85 mm
Nominal cross section 24 kV min 120 mm²
Nominal cross section 24 kV max 300 mm²
More Information
Delivery scope Spreader cap, Heat shrinkable tube (tracking resistant), Heat shrinkable tube medium-walled, Silicone field control elements, Silicone sheds, Sealing tape, Assembly material, Assembly instructions
Shelf life description Unlimited shelf life
Country of origin Germany
Customs tariff number 85469090
EAN/GTIN 4010311023069
Packaging type Piece Carton Pal. OW
Content quantity 1 1 84
Unit of measure Piece Piece Piece
Lenght (mm) 435 435 1200
Width (mm) 175 175 800
Height (mm) 175 175 1130
Net weight (kg) 1,539 1,539 129,276
Gross weight (kg) 1,539 1,539 147,476
