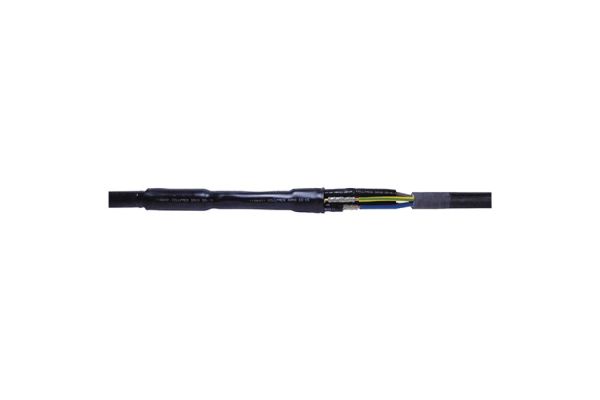

SMH1 1.5-10
Heat shrinkable straight-through joint
for unarmoured polymeric cables
Art. no.
145651
| Product family | SMH1…5 |
|---|---|
| Main description | Heat shrinkable straight-through joint |
| Sub description | for unarmoured polymeric cables |
| Family description | Universally suitable for connecting polymeric cables or conductors insulated with PVC, PE and XLPE (e.g. N(A)YY, NYM, TT). Suitable for compression connectors on aluminium or copper cables. |
| Optional accessory | Compression connectors (see Connecting technology) |
| Characteristics | Compact dimensions, Wide conductor and cross-section range, Resistant to chemical agents, Resistant to alkaline earth elements, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Halogen-free, Transversely waterproof, High electrical insulating values, High mechanical strength |
| Applications | Indoor, Outdoor, Underground, Water, Installation ducts, Ductwork |
| Voltage levels | U0/U (Um) 0,6/1 (1,2) kV |
|---|---|
| Test standards | EN 50393 |
| Article notes | for aerodrome lighting |
| Nominal cross section Polymeric cable unarmoured per conductor 1x min | 1,5 mm² |
| Nominal cross section Polymeric cable unarmoured per conductor 1x max | 10 mm² |
| Delivery scope | Outer sleeve, Inner sleeves, Cleaning tissue, Emery cloth, Assembly instructions | |
|---|---|---|
| Shelf life description | Unlimited shelf life | |
| Country of origin | Germany | |
| Customs tariff number | 39173900 | |
| EAN/GTIN | 4010311096421 | |
| Packaging type | Piece | Bag1 |
| Content quantity | 1 | 1 |
| Unit of measure | Piece | Piece |
| Lenght (mm) | 319 | 319 |
| Width (mm) | 145 | 145 |
| Height (mm) | 55 | 55 |
| Net weight (kg) | 0,083 | 0,083 |
| Gross weight (kg) | 0,083 | 0,083 |
