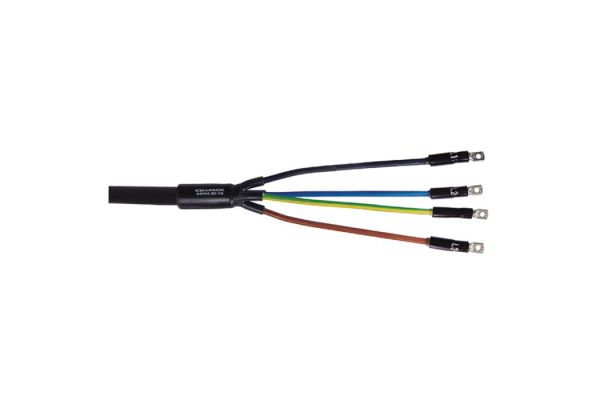

SFEH4 150-300
Heat shrinkable cable termination
for unarmoured polymeric cables
Art. no.
145448
| Product family | SFEH |
|---|---|
| Main description | Heat shrinkable cable termination |
| Sub description | for unarmoured polymeric cables |
| Family description | Universally suitable to terminate polymeric cables and electrical equipment. Suitable for cables insulated with PE, VPE, PVC und cable sheaths insulated with PVC or PE suitable for compression lugs on aluminium and copper conductors. |
| Optional accessory | Compression cable lugs (see Connecting technology) |
| Characteristics | Compact dimensions, Wide conductor and cross-section range, Resistant to chemical agents, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Halogen-free, High electrical insulating values, High mechanical strength |
| Applications | Indoor |
| Voltage levels | U0/U (Um) 0,6/1 (1,2) kV |
|---|---|
| Test standards | EN 50393 |
| Nominal cross section Polymeric cable unarmoured per conductor 4x min | 150 mm² |
| Nominal cross section Polymeric cable unarmoured per conductor 4x max | 300 mm² |
| Delivery scope | Spreader cap, Sealing tubes, Cleaning tissue, Emery cloth, Assembly instructions | ||
|---|---|---|---|
| Shelf life description | Unlimited shelf life | ||
| Country of origin | Germany | ||
| Customs tariff number | 39174000 | ||
| EAN/GTIN | 4010311004631 | ||
| Packaging type | Piece | Bag1 | Pal. OW |
| Content quantity | 1 | 1 | 100 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 237 | 237 | 1200 |
| Width (mm) | 201 | 201 | 800 |
| Height (mm) | 110 | 110 | 770 |
| Net weight (kg) | 0,257 | 0,257 | 25,7 |
| Gross weight (kg) | 0,257 | 0,257 | 43,9 |
