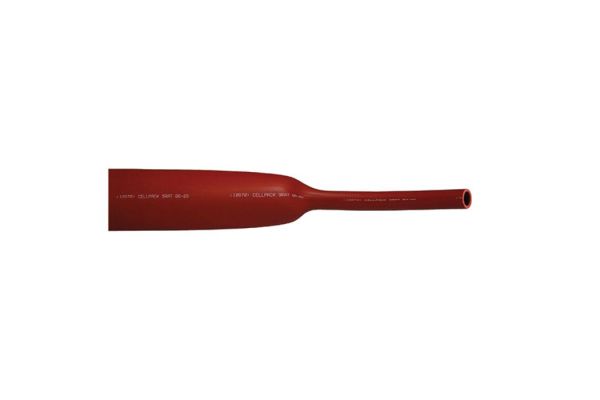

SRAT 60-20

Heat shrinkable thick wall tube
halogen-free shrink ratio 3 : 1
Art. no.
More Information
Product family SRAT
Main description Heat shrinkable thick wall tube
Sub description halogen-free shrink ratio 3 : 1
Family description The heat shrinkable tubes type SRAT are thick-walled, without thermoplastic adhesive with a shrinkage ratio of 3:1. Typical applications are as insulation tubes for conductors in cable terminations of 3.6 to 42 kVas well as suitable for corrosion protection.
Notes A standard spool may include sections which have been tied together., Other lengths available on request.
Characteristics Thick wall, Stabilized against UV rays, Halogen-free, Corrosion-resistant, Infusible, Highly resistant to electrical breakdown, Tracking resistance, High tensile strength, Free of lead and cadmium, Silicone free
More Information
Test standards IEC 60684-2
Materials Cross-linked polyolefin
Selection Note spools
Length L 30 m
Colours red brown
Inner diameter before shrinking (mm) 60 mm
Inner diameter after shrinking (mm) 20 mm
Recovered wall thickness 3,1 mm
Tracking resistance Class 2A
Tracking resistance (associated standard) IEC 60684-2
Resistance to fungus and decay: Elongation at break 350 %
Resistance to fungus and decay: Tensile strength at break 10 MPa
Weather resistance: Elongation at break 250 %
Weather resistance: Tensile strength at break 9 MPa
Weather resistance (associated standard) IEC 60684-2
Hardness 44 Shore D
Hardness (associated standard) DIN 53505
Elongation at break 350 %
Elongation at break (associated standard) IEC 60684-2
Tensile strength at break 12 MPa
Tensile strength at break (associated standard) IEC 60684-2
Longitudinal shrinkage +/- 10 %
Longitudinal shrinkage (associated standard) IEC 60684-2
Shrink ratio 3 : 1
Shrink ratio (associated standard) IEC 60684-2
Eccentricity expanded 60 %
Eccentricity recovered 85 %
Eccentricity (associated standard) IEC 60684-2
Operating temperature range min -40 °C
Operating temperature range max 100 °C
Operating temperature range (associated standard) IEC 60684-2
Shrinkage temperature > 125 °C
Flame propagation Burning time < 1 s
Flame propagation (associated standard) IEC 60684-2
Flexibility at low temperatures -40 °C
Flexibility at low temperatures (associated standard) IEC 60684-2
Thermal ageing (168 h at 150 °C): Elongation at break 300 %
Thermal ageing (168 h at 150 °C): Tensile strength at break 11 MPa
Thermal ageing (168 h at 150 °C) (associated standard) IEC 60684-2
Operation temperature min. -40 °C
Operation temperature max. 100 °C
Operation temperature (associated standard) IEC 60684-2
Dielectric strength ​​ 20 kV/mm
Dielectric strength (associated standard) IEC 60684-2
Resistance to fungus and decay (associated standard) IEC 60684-2
More Information
Delivery scope Thick wall heat shrinkable tube, on spool or in lengths
Shelf life description Unlimited shelf life
Country of origin Germany
Customs tariff number 39173200
EAN/GTIN 4010311017051
Packaging type Meter Coil Pal. OW
Content quantity 1 30 420
Unit of measure Meter Meter Meter
Lenght (mm) 0 578 1200
Width (mm) 0 578 800
Height (mm) 0 150 1130
Net weight (kg) 0,325 9,75 136,5
Gross weight (kg) 0,325 9,77 213,2
