EGA 16-3
Earthing set for cable terminations
for cables with tape screen and/or armouring for cable terminations
Art. no.
143503
| Product family | EGA-E |
|---|---|
| Main description | Earthing set for cable terminations |
| Sub description | for cables with tape screen and/or armouring for cable terminations |

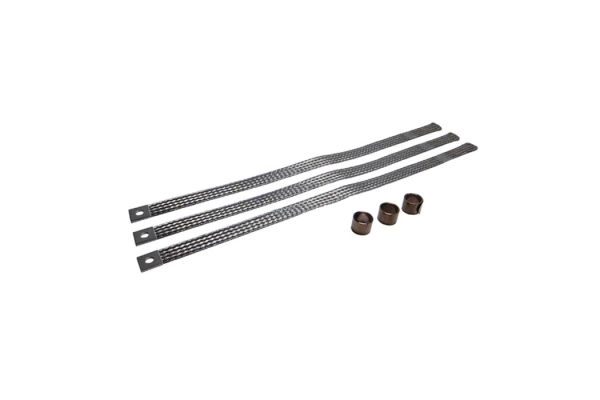

| Family description | EGA earthing set for cable terminations for 1-core cables with copper tape or aluminium screen and for unarmoured 3-core cables. Kit components: 3 flat-rolled copper earth braids and 3 pressure springs. |
| Notes | Additional pressure springs RF (ZR1/ZR2) for armoured cables to be ordered separately (see Accessories). |
| Characteristics | Quick, safe and easy assembly, Superior electrical properties, High mechanical strength |
| Applications | Earthing continuity and earth bonding, For cast resin, heat shrinkable and slip-on cable accessories, Enables solder-free electrical connection of metal cable components (screen, armouring, metal sheath) |
| Pressure spring type | RF3 |
|---|---|
| Diameter hole copper braid | 8,5 mm |
| Nominal cross section Copper braid | 16 mm² |
| Additional pressure spring ZR1 | RF4 |
| Additional pressure spring ZR2 | RF5 |
| Length L | 500 mm |
| Nominal cross section 7,2 kV min | 150 mm² |
| Nominal cross section 7,2 kV max | 240 mm² |
| Nominal cross section 12 kV min | 120 mm² |
| Nominal cross section 12 kV max | 240 mm² |
| Nominal cross section 17,5 kV min | 95 mm² |
| Nominal cross section 17,5 kV max | 185 mm² |
| Nominal cross section 24 kV min | 70 mm² |
| Nominal cross section 24 kV max | 150 mm² |
| Nominal cross section 36 kV min | 120 mm² |
| Nominal cross section 36 kV max | 120 mm² |
| Delivery scope | 1 Set for 3 phases: Copper braid earth tapes, pressure springs RF | ||
|---|---|---|---|
| Country of origin | France | ||
| Customs tariff number | 74130000 | ||
| EAN/GTIN | 4010311050232 | ||
| Packaging type | Piece | Bag1 | Carton |
| Content quantity | 1 | 1 | 40 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 267 | 267 | 475 |
| Width (mm) | 141 | 141 | 400 |
| Height (mm) | 27 | 27 | 235 |
| Net weight (kg) | 0,299 | 0,299 | 11,96 |
| Gross weight (kg) | 0,299 | 0,299 | 12,26 |
