T 5 EG

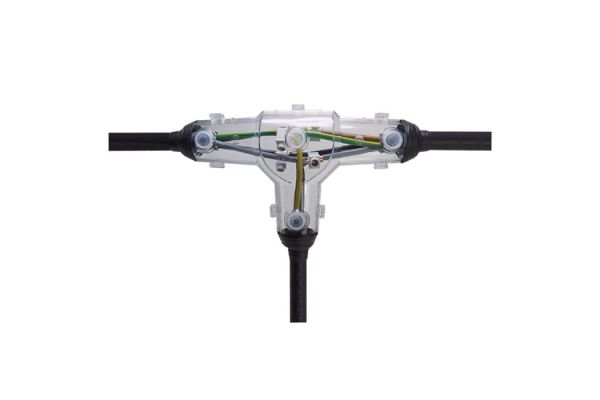

Cast resin branch joint
for polymeric cables
Art. no.
131854
More Information
Product family T...EG
Main description Cast resin branch joint
Sub description for polymeric cables
Family description Universally suitable for branching polymeric cables or conductors insulated with PVC, PE, XLPE and EPR (e.g. N(A)YY, NYM, TT) with or without concentric conductor. With hydrolysis resistance PUR cast resin EG. Suitable for branch clamps on copper and aluminium conductors.
Notes The European Commission amended Annex XVII of the REACH Regulation (EC) (new number 74) with Regulation (EU) 2020/1149, which entered into force on 24 August 2020. In accordance with the new REACH Regulation, appropriate training will be required prior to the industrial or professional use of diisocyanates, adhesives and sealants as of 24 August 2023. All information regarding training materials and training courses is available on the ISOPA/ALIPA website https://www.safeusediisocyanates.eu/
Optional accessory Screw branch clamp AK (see Connecting technology), Cleaner UNIVERSAL CLEANER 121 (see Accessories), Branch clamp KP (see Connecting technology), Split bolt clamp FK (see Connecting technology)
Characteristics Compact dimensions, High-quality transparent shockproof plastic shell, Resistant to chemical agents, Stabilized against UV rays, Resistant to alkaline earth elements, Longitudinally and transversely watertight, High electrical insulating values, High mechanical strength, Ready for immediate operation, Quick, safe and easy assembly, Large filler aperture to facilitate casting
Applications Indoor, Outdoor, Underground, Water, Installation ducts
More Information
Voltage levels U0/U (Um) 0,6/1 (1,2) kV
Test standards EN 50393
Length L 550 mm
Width B 290 mm
Heigth H 155 mm
Diameter D 130 mm
Nominal cross section Main cable Polymeric cable unarmoured per conductor 3x max 185 mm²
Nominal cross section Branch cable Polymeric cable unarmoured per conductor 3x max 150 mm²
Nominal cross section Main cable Polymeric cable unarmoured per conductor 4x max 185 mm²
Nominal cross section Branch cable Polymeric cable unarmoured per conductor 4x max 70 mm²
Nominal cross section Main cable Polymeric cable with concentric conductor per conductor 3x max 185 mm²
Nominal cross section Main cable Polymeric cable with concentric conductor per conductor 4x max 150 mm²
Nominal cross section Branch cable Polymeric cable with concentric conductor per conductor 4x max 95 mm²
Diameter cable max 62 mm
More Information
Delivery scope Fill and air-release funnel, Hydrolysis resistance PUR cast resin EG, Packed in practical and easy-to-use two-chamber bags, Transparent plastic shell, PVC insulation tape, Protective gloves, Assembly instructions
Shelf life 40 Month
Country of origin Germany
Customs tariff number 39095090
EAN/GTIN 4010311053943
Packaging type Piece Case Pal. OW
Content quantity 1 1 24
Unit of measure Piece Piece Piece
Lenght (mm) 572 572 1200
Width (mm) 355 355 800
Height (mm) 155 155 1130
Net weight (kg) 7,367 7,367 176,808
Gross weight (kg) 7,367 7,367 195,008
