SEH3 125-59

Heat shrinkable spreader cap
for 2- 3- 4- 5-core cables with adhesive
Art. no.
125371
Inquiry
Add to Wish List

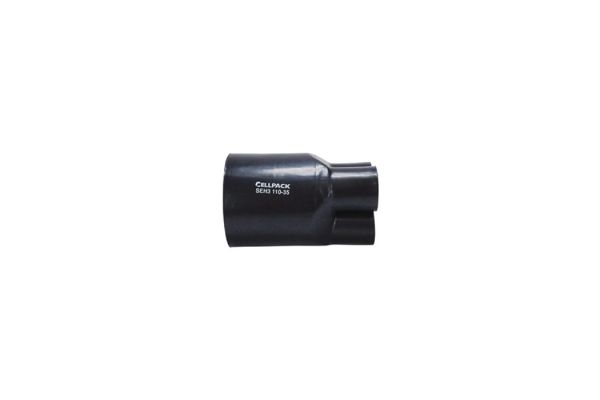

main product photo
More Information
Product family SEH
Main description Heat shrinkable spreader cap
Sub description for 2- 3- 4- 5-core cables with adhesive
Family description Sealing spreader caps for plastic-, rubber- and paper-insulated cables.
Notes Recovered dimension after shrinking
Characteristics With hot melt adhesive, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Halogen-free, Superior electrical properties, Pressure-tight, Superior mechanical properties, 100 % waterproof
Applications Indoor, Outdoor
Technical data
More Information
Test standards IEC 60684-2
Materials Cross-linked polyolefin, Free of lead and cadmium
Selection Note 3-fingers spreader cap
Length L1 208 mm
Length L1* 268 mm
Length L2 51 mm
Colours black
Inner diameter D1 before shrinking 125
Inner diameter D1 after shrinking 59
Inner diameter D2 before shrinking 67
Inner diameter D2 after shrinking 27
Recovered wall thickness 4,4 mm
Nominal cross section min 240 mm²
Nominal cross section max 500 mm²
Elongation at break 300 %
Elongation at break (associated standard) IEC 62677-2
Tensile strength at break 10 MPa
Tensile strength at break (associated standard) IEC 62677-2
Operating temperature range min -40 °C
Operating temperature range max 100 °C
Operating temperature range (associated standard) IEC 62677-2
Shrinkage temperature > 110 °C
Burning behaviour not self-extinguishing
Burning behaviour (associated standard) IEC 60684-2
Flexibility at low temperatures -40 °C
Flexibility at low temperatures (associated standard) IEC 62677-2
Thermal ageing (168 h at 150 °C): Elongation at break 200 %
Thermal ageing (168 h at 150 °C): Tensile strength at break 8 MPa
Thermal ageing (168 h at 150 °C) (associated standard) IEC 62677-2
Operation temperature min. -40 °C
Operation temperature max. 100 °C
Operation temperature (associated standard) IEC 62677-2
Specific volume resistivity 10¹² Ω cm
Specific volume resistivity (associated standard) EN 62677-2
Dielectric strength ​​ 10 kV/mm
Dielectric strength (associated standard) IEC 60243-1
Corrosion none
Corrosion (associated standard) EN 62677-2
Resistance to fungus and decay Rate 1
Resistance to fungus and decay (associated standard) IEC 62677-2
Logistic data
More Information
Delivery scope Heat shrinkable spreader cap
Shelf life description Unlimited shelf life
Country of origin India
Customs tariff number 39174000
EAN/GTIN 4010311115214
Packaging type Piece Bag Pack Carton
Content quantity 1 5 5 30
Unit of measure Piece Piece Piece Piece
Lenght (mm) 178 900 900 810
Width (mm) 178 190 190 610
Height (mm) 207 190 190 525
Net weight (kg) 0,264 1,32 1,32 7,92
Gross weight (kg) 0,264 1,325 1,325 8,22
