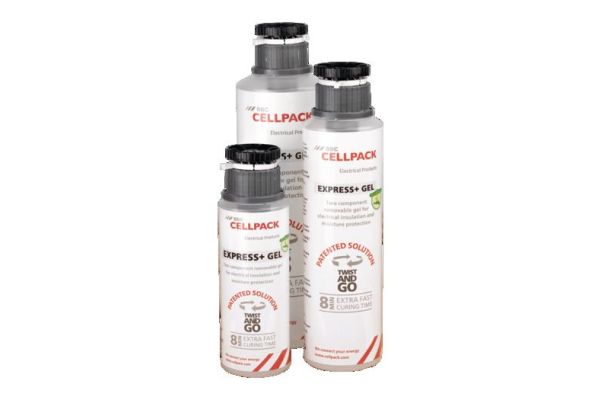

Two-component shaking gel based on silicon
Only 15 seconds of mixing time for fast casting
Art. no.
More Information
Product family EXPRESS+GEL
Main description Two-component shaking gel based on silicon
Sub description Only 15 seconds of mixing time for fast casting
Family description Innovative mixing bottle with shakeable 2-component potting compound for quick and temporary protection of electrical components. Shortest mixing time in market via shaking, color changing indicates the end of the mixing process.
Characteristics Innovative mixing process, The fastest working gel sealing compound in the market, Colour change from white to light blue, Higher electrical isolation value, Non-labelled and non-toxic, Removable, Halogen-free, Seals and protects all electrical installations
Applications Indoor, Outdoor, Temporary applications, Protection against moisture (IP 68 protection class in a suitable box), For electrical systems up to 1 kV
More Information
Content 900 ml
Viscosity (23 °C) 288 mPas
Viscosity (associated standard) ISO 2555
Processing time (pot life) (23 °C) 8 minutes
Processing time (pot life) (23 °C) (associated standard) EN 60684-2
Density 0,97 g/cm³
Mixing ratio 1 : 1
Working temperature min 5 °C
Working temperature max 30 °C
Heat resistance min -40 °C
Heat resistance max 150 °C
Specific volume resistivity 1.51 x 10¹⁴ Ω cm
Specific volume resistivity (associated standard) HD 429
Dielectric strength ≥ 18 kV/mm
Dielectric strength (associated standard) EN 60243-1
More Information
Delivery scope EXPRESS+ GEL in patented mixing bottle
Shelf life description Unlimited shelf life
Storage temperatur min 5 °C
Storage temperatur max 25 °C
Country of origin Italy
Customs tariff number 39100000
EAN/GTIN 4010311202655
Alternative unit of measure Piece Bottle Case Carton Pallet
Base quantity 1 1 1 12 288
Base unit of measure Piece Piece Piece Piece Piece
Lenght (mm) 300 300 310 330 1200
Width (mm) 80 80 90 200 800
Height (mm) 80 80 90 270 1200
Net weight (kg) 0,92 0,92 0,92 11,04 264,96
Gross weight (kg) 0,92 0,92 0,92 11,34 283,16
