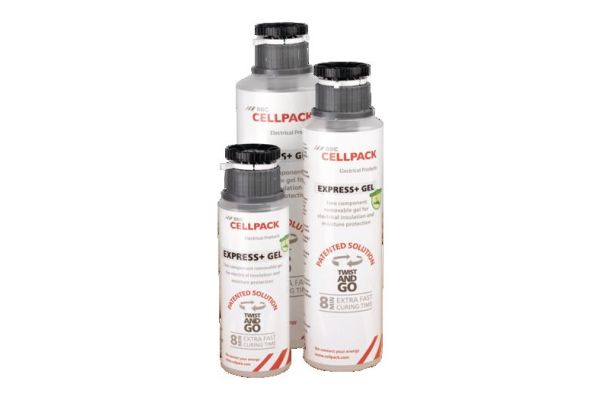

EXPRESS+ GEL 600
Two-component shaking gel based on silicon
Only 15 seconds of mixing time for fast casting
Art. no.
461306
| Product family | EXPRESS+GEL |
|---|---|
| Product family | EXPRESS+GEL |
| Main description | Two-component shaking gel based on silicon |
| Sub description | Only 15 seconds of mixing time for fast casting |
| Family description | Innovative mixing bottle with shakeable 2-component potting compound for quick and temporary protection of electrical components. Shortest mixing time in market via shaking, color changing indicates the end of the mixing process. |
| Characteristics | Innovative mixing process, The fastest working gel sealing compound in the market, Colour change from white to light blue, Higher electrical isolation value, Non-labelled and non-toxic, Removable, Halogen-free, Seals and protects all electrical installations |
| Applications | Indoor, Outdoor, Temporary applications, Protection against moisture (IP 68 protection class in a suitable box), For electrical systems up to 1 kV |
| Content | 600 ml |
|---|---|
| Viscosity (23 °C) | 288 mPas |
| Viscosity (associated standard) | ISO 2555 |
| Pot life (23 °C) | 8 minutes |
| Pot life (23 °C) (associated standard) | EN 60684-2 |
| Density | 0,97 g/cm³ |
| Mixing ratio | 1 : 1 |
| Working temperature min | 5 °C |
| Working temperature max | 30 °C |
| Heat resistance min | -40 °C |
| Heat resistance max | 150 °C |
| Specific volume resistivity | 1.51 x 10¹⁴ Ω cm |
| Specific volume resistivity (associated standard) | HD 429 |
| Dielectric strength | ≥ 18 kV/mm |
| Dielectric strength (associated standard) | EN 60243-1 |
| Delivery scope | EXPRESS+ GEL in patented mixing bottle | ||||
|---|---|---|---|---|---|
| Shelf life description | Unlimited shelf life | ||||
| Storage temperatur min | 5 °C | ||||
| Storage temperatur max | 25 °C | ||||
| Country of origin | Italy | ||||
| Customs tariff number | 39100000 | ||||
| EAN/GTIN | 4010311202648 | ||||
| Alternate quantity | 1 | 1 | 1 | 1 | 1 |
| Alternative unit of measure | Piece | Bottle | Case | Carton | Pallet |
| Base quantity | 1 | 1 | 1 | 12 | 576 |
| Base unit of measure | Piece | Piece | Piece | Piece | Piece |
| Lenght (mm) | 260 | 260 | 280 | 310 | 1200 |
| Width (mm) | 65 | 65 | 80 | 240 | 800 |
| Height (mm) | 65 | 65 | 80 | 300 | 1200 |
| Net weight (kg) | 0,62 | 0,62 | 0,62 | 7,44 | 357,12 |
| Gross weight (kg) | 0,62 | 0,62 | 0,62 | 7,74 | 375,32 |
