CCMSV 24kV 300-630
1-core-straight-through joint

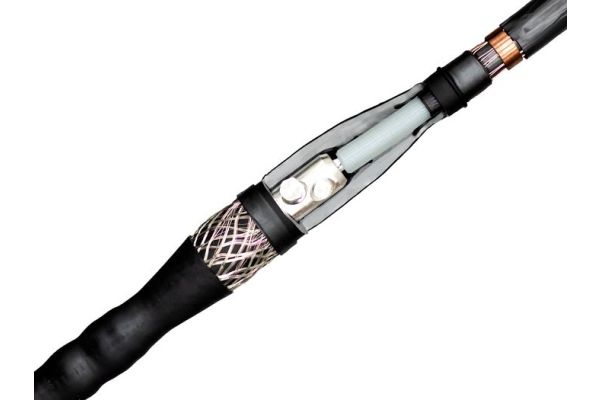

All-in-one cold shrinkable joint body
Art. no.
456151
| Product family | CCMSV |
|---|---|
| Product family | CCMSV |
| Main description | 1-core-straight-through joint |
| Sub description | All-in-one cold shrinkable joint body |
| Family description | Cold shrinkable straight-through joints CCMSV are suitable for all 1-core polymeric-insulated cables (PVC, PE, VPE, EPR). They allow the connection of cables with different cross sections and conductor materials even with different cable designs concerning the semi-conductive layer (graphite-coated, removable or strippable) and screen design (copper wire or tape screen). With screw connector. |
| Characteristics | Few components, compact design and reduced working length, Silicone joint body with integrated electric stress control, Suitable for a wide range of applications due to integrated screw connector, For both copper and aluminium conductors, With cold shrinkable outer protection, Quick, safe and easy assembly, Ready for immediate operation |
| Applications | Indoor, Outdoor, Underground, Water, Installation ducts |
| Voltage levels | U0/U (Um) 6/10 (12) kV - 12,7/22 (24) kV |
|---|---|
| Test standards | CENELEC HD 629.1 |
| Length L | 800 mm |
| Diameter over core insulation after removal of the outer conductive layer min | 30 mm |
| Diameter over core insulation after removal of the outer conductive layer max | 42 mm |
| Nominal cross section 12 kV min | 400 mm² |
| Nominal cross section 12 kV max | 630 mm² |
| Nominal cross section 24 kV min | 300 mm² |
| Nominal cross section 24 kV max | 630 mm² |
| Delivery scope | All-in-one cold shrinkable joint body, Screw connector, Silicone grease, Sealing compound, Sealing tape, Pressure springs, Assembly material, Assembly instructions | ||
|---|---|---|---|
| Shelf life | 24 Month | ||
| Storage temperatur min | 5 °C | ||
| Storage temperatur max | 40 °C | ||
| Country of origin | Italy | ||
| Customs tariff number | 85359000 | ||
| EAN/GTIN | 4010311202051 | ||
| Alternate quantity | 1 | 1 | 1 |
| Alternative unit of measure | Piece | Carton | Pal. OW |
| Base quantity | 1 | 1 | 24 |
| Base unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 720 | 720 | 1200 |
| Width (mm) | 221 | 221 | 800 |
| Height (mm) | 170 | 170 | 1130 |
| Net weight (kg) | 4,826 | 4,826 | 115,824 |
| Gross weight (kg) | 4,826 | 4,826 | 134,024 |
