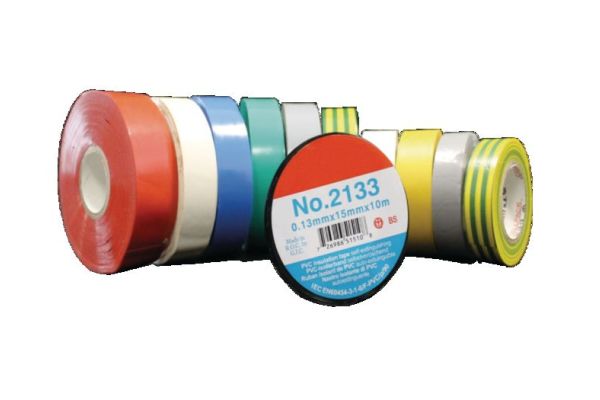

| Product family | No. 2133 |
|---|---|
| Main description | PVC insulation tape |
| Sub description | self-extinguishing |
| Family description | PVC insulation tape with flame-retardant and cold-resistant adhesive for electrical and telecommunications applications. |
| Characteristics | Excellent adherence to a wide range of substances, Very good resistance to abrasion, corrosion and moisture, Stabilized against UV rays |
| Applications | Sealing, Padding of cable insulation, Bundling, Reinforcing, Insulating |
| Test standards | IMQ-Certification |
|---|---|
| Materials | PVC |
| Length L | 25 m |
| Width B | 25 mm |
| Thickness | 0,15 mm |
| Colours | black |
| Adhesive strength | 1,8 N/cm |
| Elongation at break | 100 % |
| Tensile strength at break | 28 N/cm |
| Operation temperature min | -10 °C |
| Operation temperature max | 90 °C |
| Dielectric strength | 9 kV/mm |
| Delivery scope | PVC insulation tape | |||
|---|---|---|---|---|
| Country of origin | Taiwan | |||
| Customs tariff number | 39191012 | |||
| EAN/GTIN | 4010311203485 | |||
| Alternate quantity | 1 | 1 | 1 | 1 |
| Alternative unit of measure | Piece | Pack | Carton | Pal. OW |
| Base quantity | 1 | 8 | 96 | 8448 |
| Base unit of measure | Piece | Piece | Piece | Piece |
| Lenght (mm) | 0 | 78,4 | 330 | 1280 |
| Width (mm) | 0 | 78,4 | 250 | 780 |
| Height (mm) | 0 | 200 | 230 | 1790 |
| Net weight (kg) | 0,15 | 1,2 | 14,4 | 1267,2 |
| Gross weight (kg) | 0,15 | 1,205 | 14,7 | 1285,4 |
