| Product family | No. 2133 |
|---|---|

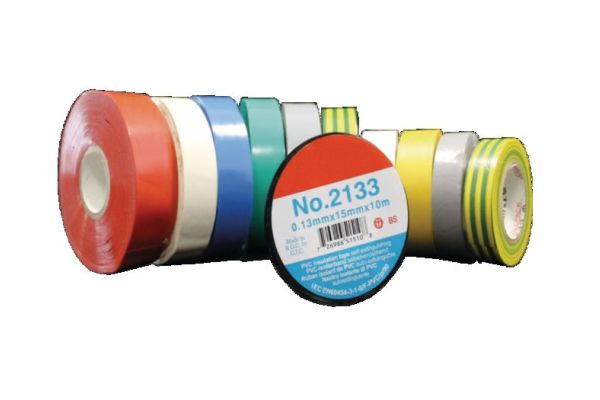

| Main description | PVC insulation tape |
| Sub description | self-extinguishing |
| Family description | PVC insulation tape with flame-retardant and cold-resistant adhesive for electrical and telecommunications applications. |
| Characteristics | Excellent adherence to a wide range of substances, Very good resistance to abrasion, corrosion and moisture, Stabilized against UV rays |
| Applications | Sealing, Padding of cable insulation, Bundling, Reinforcing, Insulating |
| Test standards | IMQ-Certification |
|---|---|
| Materials | PVC |
| Length L | 20 m |
| Width B | 19 mm |
| Thickness | 0,13 mm |
| Colours | red |
| Adhesive strength | 1,8 N/cm |
| Elongation at break | 100 % |
| Tensile strength at break | 28 N/cm |
| Operation temperature min. | -10 °C |
| Operation temperature max. | 90 °C |
| Dielectric strength | 9 kV/mm |
| Delivery scope | PVC insulation tape | ||||
|---|---|---|---|---|---|
| Country of origin | Taiwan | ||||
| Customs tariff number | 39191012 | ||||
| EAN/GTIN | 4010311203560 | ||||
| Packaging type | Piece | Pack | Carton | Pallet | Pal. OW |
| Content quantity | 1 | 10 | 120 | 7200 | 9240 |
| Unit of measure | Piece | Piece | Piece | Piece | Piece |
| Lenght (mm) | 0 | 68,5 | 293 | 1200 | 1140 |
| Width (mm) | 0 | 68,5 | 223 | 1000 | 700 |
| Height (mm) | 0 | 190 | 222 | 1480 | 1742 |
| Net weight (kg) | 0,09 | 0,9 | 10,8 | 648 | 831,6 |
| Gross weight (kg) | 0,09 | 0,905 | 12,5 | 666,2 | 849,8 |
