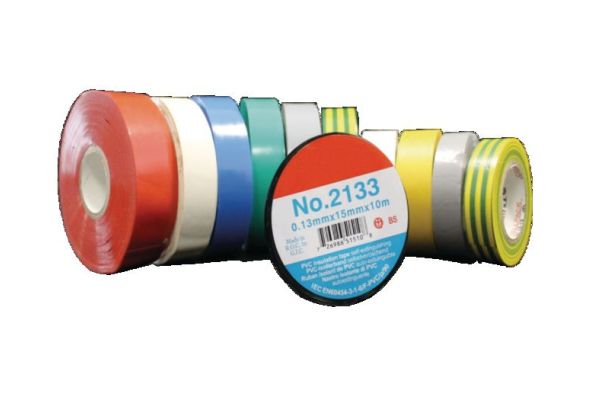

No. 2133 green-yellow
PVC insulation tape
self-extinguishing
Art. no.
442058
| Product family | No. 2133 |
|---|---|
| Main description | PVC insulation tape |
| Sub description | self-extinguishing |
| Family description | PVC insulation tape with flame-retardant and cold-resistant adhesive for electrical and telecommunications applications. |
| Characteristics | Excellent adherence to a wide range of substances, Very good resistance to abrasion, corrosion and moisture, Stabilized against UV rays |
| Applications | Sealing, Padding of cable insulation, Bundling, Reinforcing, Insulating |
| Test standards | IMQ-Certification |
|---|---|
| Materials | PVC |
| Length L | 10 m |
| Width B | 15 mm |
| Thickness | 0,15 mm |
| Colours | green-yellow |
| Adhesive strength | 1,8 N/cm |
| Elongation at break | 100 % |
| Tensile strength at break | 28 N/cm |
| Operation temperature min. | -10 °C |
| Operation temperature max. | 90 °C |
| Dielectric strength | 9 kV/mm |
| Delivery scope | PVC insulation tape | |||
|---|---|---|---|---|
| Country of origin | Taiwan | |||
| Customs tariff number | 39191012 | |||
| EAN/GTIN | 4010311203645 | |||
| Packaging type | Piece | Pack | Carton | Pal. OW |
| Content quantity | 1 | 10 | 200 | 17600 |
| Unit of measure | Piece | Piece | Piece | Piece |
| Lenght (mm) | 0 | 57 | 306 | 1200 |
| Width (mm) | 0 | 57 | 246 | 770 |
| Height (mm) | 0 | 150 | 182 | 1644 |
| Net weight (kg) | 0,048 | 0,48 | 9,6 | 844,8 |
| Gross weight (kg) | 0,048 | 0,485 | 9,9 | 863 |
