SKHI 35-15

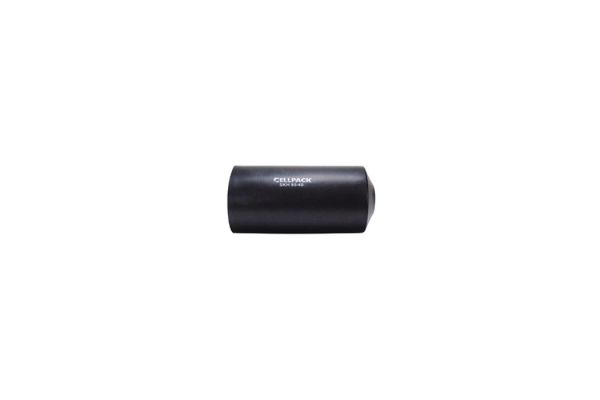

Heat shrinkable end cap
with adhesive optionally with additional sealing material
Art. no.
437534
| Product family | SKH, SKHD |
|---|---|
| Main description | Heat shrinkable end cap |
| Sub description | with adhesive optionally with additional sealing material |
| Family description | Protection against humidity and pressure for cables, conductors and pipes with a diameter of 5 - 105 mm. |
| Notes | Recovered dimension after shrinking |
| Characteristics | Resistant to chemical agents, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Halogen-free, Superior electrical properties, Pressure-tight, High mechanical strength, 100 % waterproof |
| Applications | Protection against moisture and pressure for cables, conductors and pipes |
| Test standards | IEC 60684-2 |
|---|---|
| Materials | Cross-linked polyolefin, Free of lead and cadmium |
| Article notes | with adhesive |
| Selection Note | with adhesive |
| Length L1* | 103 mm |
| Colours | black |
| Inner diameter before shrinking (mm) | 35 mm |
| Inner diameter after shrinking (mm) | 15 mm |
| Recovered wall thickness | 3,2 mm |
| Delivery scope | Heat shrinkable end cap | |||
|---|---|---|---|---|
| Shelf life description | Unlimited shelf life | |||
| Country of origin | India | |||
| Customs tariff number | 39174000 | |||
| EAN/GTIN | 4010311198859 | |||
| Alternate quantity | 1 | 1 | 1 | 1 |
| Alternative unit of measure | Bag | Carton | Pallet | Piece |
| Base quantity | 20 | 240 | 3840 | 1 |
| Base unit of measure | Piece | Piece | Piece | Piece |
| Lenght (mm) | 500 | 590 | 1200 | 112,6 |
| Width (mm) | 230 | 385 | 800 | 39,55 |
| Height (mm) | 41 | 260 | 140 | 39,55 |
| Net weight (kg) | 0,7 | 8,4 | 134,4 | 0,035 |
| Gross weight (kg) | 0,74 | 10,28 | 175,48 | 0,037 |
