EASYCELL 3 V

Gel straight-through joint
with connection block
Art. no.
389677
More Information
Product family EASYCELL...V
Main description Gel straight-through joint
Sub description with connection block
Family description Universally suitable for connecting all polymeric cables and conductors (e.g. N(A)YY, NYM, H05), cross section range from 1.5 mm² to 25 mm². Suitable for aluminium and copper conductors.
Copyright EASYCELL is a registered trademark of BBC Cellpack GmbH
Optional accessory EASYCELL® Strain relief, available for connecting joints from 6 mm² to 25 mm² (EASYCELL 4 V, EASYCELL 5 V)
Characteristics Connector area completely sealed by gel, Re-accessible and ready for immediate operation, Multi range one-piece connection block, High-quality shockproof plastic shells, flame retardant and UV-resistant, Quick, safe and easy assembly
Applications Indoor (Laying in buildings and on cable racks), Outdoor, Underground, Water (according to test standard)
More Information
Voltage levels U0/U (Um) 0,6/1 (1,2) kV
Test standards EN 50393, EN 60695-2-11
Housing type 3
Number of housing 1 Pieces
Connector type Connection block
Length L 146 mm
Width B 55 mm
Heigth H 35 mm
Nominal cross section Polymeric cable unarmoured per conductor 3x min 1,5 mm²
Nominal cross section Polymeric cable unarmoured per conductor 3x max 6 mm²
Nominal cross section Polymeric cable unarmoured per conductor 4x min 1,5 mm²
Nominal cross section Polymeric cable unarmoured per conductor 4x max 6 mm²
Nominal cross section Polymeric cable unarmoured per conductor 5x min 1,5 mm²
Nominal cross section Polymeric cable unarmoured per conductor 5x max 6 mm²
More Information

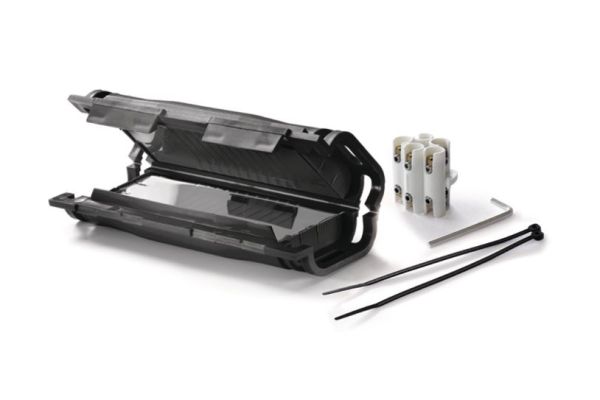

Delivery scope Gel straight-through joint, Connection block, Allen key, Cable ties, Assembly instructions
Shelf life description Unlimited shelf life
Country of origin Italy
Customs tariff number 85369010
EAN/GTIN 4010311186948
Packaging type Piece Case Carton Pal. OW
Content quantity 1 1 80 1440
Unit of measure Piece Piece Piece Piece
Lenght (mm) 195 195 410 1200
Width (mm) 67 67 380 800
Height (mm) 47 47 370 1300
Net weight (kg) 0,237 0,237 18,96 341,28
Gross weight (kg) 0,237 0,237 19,24 359,48
