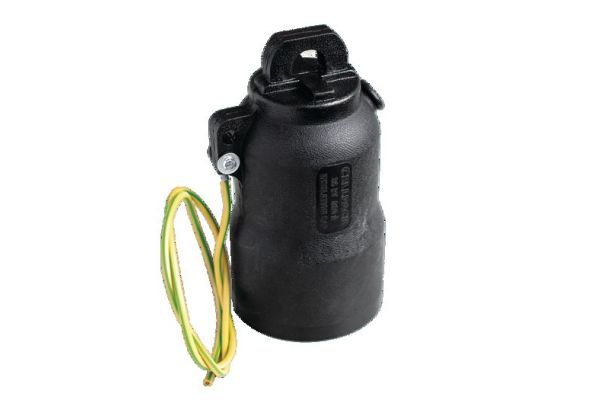

CIK 630A 24 kV
Voltage-resistant insulating cap
for plug-in connections type A 250A and type C 630A
Art. no.
372710
| Product family | CIK |
|---|---|
| Product family | CIK |
| Main description | Voltage-resistant insulating cap |
| Sub description | for plug-in connections type A 250A and type C 630A |
| Family description | The voltage-resistant insulating caps CIK are suitable for electrical insulations of outer cones type A 250A (with bail holder) and type C 630A (screwable) on encapsulated switching equipment and transformers up to 36 kV, in accordance with EN 50180 and EN 50181. |
| Characteristics | Submersible, Outer semi-conductive layer made of semi-conductive EPDM provides protection from exposed electrical parts, Quick, safe and easy assembly |
| Applications | Indoor, Outdoor |
| Voltage levels | U0/U (Um) 6/10 (12) kV - 12,7/22 (24) kV |
|---|
| Delivery scope | Set of 3 voltage resistant insulating caps, Assembly material, Assembly instructions | ||
|---|---|---|---|
| Shelf life description | Unlimited shelf life | ||
| Country of origin | Germany | ||
| Customs tariff number | 85479000 | ||
| EAN/GTIN | 4010311182704 | ||
| Alternate quantity | 1 | 1 | 1 |
| Alternative unit of measure | Piece | Bag1 | Carton |
| Base quantity | 1 | 1 | 5 |
| Base unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 311 | 311 | 580 |
| Width (mm) | 214 | 214 | 388 |
| Height (mm) | 102 | 102 | 480 |
| Net weight (kg) | 1,918 | 1,918 | 9,59 |
| Gross weight (kg) | 1,918 | 1,918 | 9,89 |
