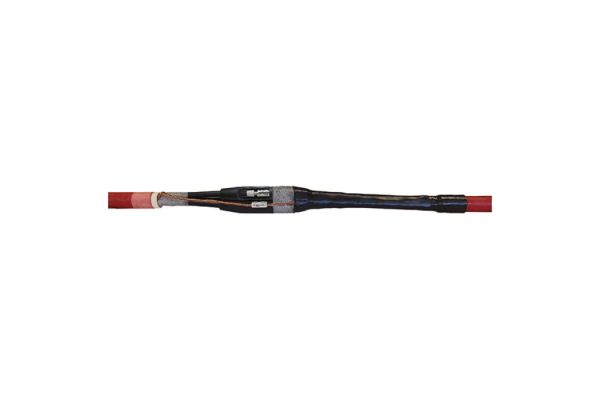

CAMSV-3S 24kV 35-95
3-core straight-through joint with screw cable lugs
with heat shrinkable outer protection for 3-core polymeric cables
Art. no.
370731
| Product family | CAMSV-3S |
|---|---|
| Product family | CAMSV-3S |
| Main description | 3-core straight-through joint with screw cable lugs |
| Sub description | with heat shrinkable outer protection for 3-core polymeric cables |
| Family description | Contrax straight-through joints CAMSV-3S are suitable for all 3-core polymericinsulated cables (PVC, PE, XLPE, EPR). They allow the connection of cables with different cross sections and conductor materials even with different cable designs concerning the semi-conductive layer (removable or strippable) and screen design (copper wire or tape screen). With screw connectors. |
| Voltage levels | U0/U (Um) 6/10 (12) kV - 12,7/22 (24) kV |
|---|---|
| Length L | 1230 m |
| Diameter over core insulation after removal of the outer conductive layer min | 16,5 mm |
| Nominal cross section 12 kV min | 70 mm² |
| Nominal cross section 12 kV max | 150 mm² |
| Nominal cross section 17,5 kV min | 50 mm² |
| Nominal cross section 17,5 kV max | 120 mm² |
| Nominal cross section 24 kV min | 35 mm² |
| Nominal cross section 24 kV max | 95 mm² |
| Country of origin | Germany | ||
|---|---|---|---|
| Customs tariff number | 39269097 | ||
| EAN/GTIN | 4010311181691 | ||
| Alternate quantity | 1 | 1 | 1 |
| Alternative unit of measure | Piece | Carton | Pal. OW |
| Base quantity | 1 | 1 | 12 |
| Base unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 865 | 865 | 1200 |
| Width (mm) | 369 | 369 | 800 |
| Height (mm) | 170 | 170 | 1130 |
| Net weight (kg) | 3,598 | 3,598 | 43,176 |
| Gross weight (kg) | 3,598 | 3,598 | 61,376 |
