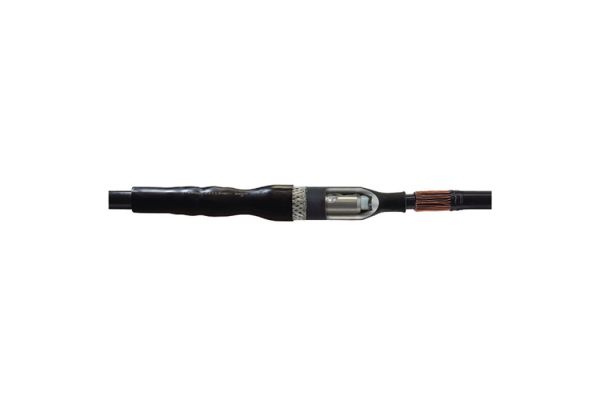

CAMSV-S 24kV 400-630

1-core straight-through joint
with screw connector and heat shrinkable outer protection
Art. no.
More Information
Product family CAMSV-S
Main description 1-core straight-through joint
Sub description with screw connector and heat shrinkable outer protection
Family description Contrax-Straight-through joints CAMSV-S are suitable for all 1-core polymericinsulated cables (PVC, PE, XLPE, EPR). They allow the connection of cables with different cross sections and conductor materials even with different cable designs concerning the semi-conductive layer (removable or strippable) and screen design (wire or tape screen). With screw connector.
Notes Can be used also for cables Um = 7,2 kV, then the minimum diameter over conductor insulation has to be checked.
Characteristics Slip-on silicone joint unit with integrated stress control element, Wide conductor and cross-section range, Suitable for a wide range of applications due to integrated screw connector, For both copper and aluminium conductors, Few components, compact design and reduced working length, With heat shrinkable outer protection, Quick, safe and easy assembly, Ready for immediate operation
Applications Indoor, Outdoor, Underground, Water, Installation ducts, Ductwork
More Information
Voltage levels U0/U (Um) 6/10 (12) kV - 12,7/22 (24) kV
Test standards CENELEC HD 629.1
Length L 700 mm
Diameter over core insulation after removal of the outer conductive layer min 29,15 mm
Nominal cross section 12 kV min 400 mm²
Nominal cross section 12 kV max 630 mm²
Nominal cross section 17,5 kV min 400 mm²
Nominal cross section 17,5 kV max 630 mm²
Nominal cross section 24 kV min 400 mm²
Nominal cross section 24 kV max 630 mm²
More Information
Delivery scope Thick wall heat shrinkable outer tube with hot melt adhesive, Silicone joint body with integrated inner and outer semiconductive layer (individually tested), Screw connector, Copper braid tube, Pressure springs, Assembly instructions
Shelf life description Unlimited shelf life
Country of origin Germany
Customs tariff number 39269097
EAN/GTIN 4010311181684
Packaging type Piece Carton Pal. OW
Content quantity 1 1 25
Unit of measure Piece Piece Piece
Lenght (mm) 730 730 1200
Width (mm) 231 231 800
Height (mm) 188 188 1100
Net weight (kg) 3,046 3,046 76,15
Gross weight (kg) 3,046 3,046 94,35
