CPAS
End-plugs
for separable connector type CTS 630A / 1250A
Art. no.
367094
| Product family | CPAS |
|---|---|
| Product family | CPAS |
| Main description | End-plugs |
| Sub description | for separable connector type CTS 630A / 1250A |
| Family description | The CPAS End-plug establishes connection on front side of the CTS 630A / 1250A separable connectors. CPAS together with Test and earthing kit CPES makes it possible to carry out testing of cables installed with CTS separable connectors without connecting them to Switchgear. |
| Optional accessory | Additional set ZS-CPS/CPES/CPAS |
| Characteristics | Safe and easy to handle, Quick, safe and easy assembly, Individually tested |
| Applications | Indoor, Outdoor |
| Voltage levels | U0/U (Um) 6/10 (12) kV - 19/33 (36) kV |
|---|
| Delivery scope | Set of 3 End-plugs, Assembly material, Assembly instructions | ||
|---|---|---|---|
| Shelf life description | Unlimited shelf life | ||
| Country of origin | Germany | ||
| Customs tariff number | 85479000 | ||
| EAN/GTIN | 4010311178790 | ||
| Alternate quantity | 1 | 1 | 1 |
| Alternative unit of measure | Piece | Carton | Pal. OW |
| Base quantity | 1 | 1 | 84 |
| Base unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 385 | 385 | 1200 |
| Width (mm) | 190 | 190 | 800 |
| Height (mm) | 134 | 134 | 1130 |
| Net weight (kg) | 1,943 | 1,943 | 163,212 |
| Gross weight (kg) | 1,943 | 1,943 | 181,412 |
- REACH conformity declaration (de)
- REACH conformity declaration (en)
- REACH conformity declaration (sp)
- REACH conformity declaration (fr)
- REACH conformity declaration (it)
- REACH conformity declaration (nl)
- REACH conformity declaration (pl)
- RoHS conformity declaration (de)
- RoHS conformity declaration (en)
- RoHS conformity declaration (sp)
- RoHS conformity declaration (fr)
- RoHS conformity declaration (it)
- RoHS conformity declaration (nl)
- RoHS conformity declaration (pl)
- Conflict minerals declaration (de)
- Conflict minerals declaration (en)
- Conflict minerals declaration (sp)
- Conflict minerals declaration (fr)
- Conflict minerals declaration (it)
- Conflict minerals declaration (nl)
- Conflict minerals declaration (pl)
- Technical data sheet (de)
- Technical data sheet (en)
- Technical data sheet (sp)
- Technical data sheet (fr)
- Technical data sheet (it)
- Technical data sheet (nl)
- Technical data sheet (pl)
- Image movie (de)
- Image movie (en)
- Image movie (fr)
- POP conformity declaration (de)
- POP conformity declaration (en)

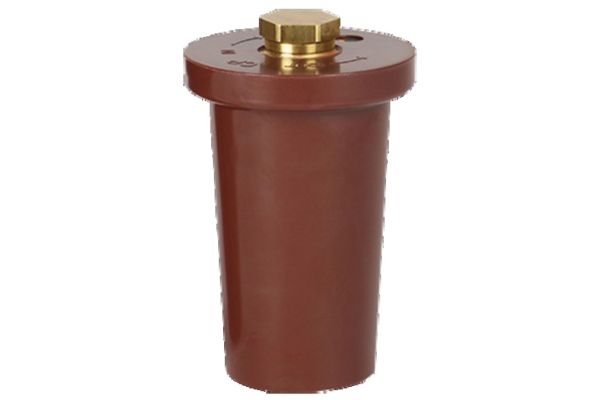

- Family image
