POWER GEL 400

Two-component gel based on silicon
to cast branch and connection boxes
Art. no.
335120
More Information
Product family POWER GEL
Product family POWER GEL
Main description Two-component gel based on silicon
Sub description to cast branch and connection boxes
Family description Individual portioned two-component sealing compound in bottles, measuring cup and spatula, all-in-one solution for a reliable protection of electrical and electronic components.
Characteristics Individual portioned, Reclosable bottles for multiple use, Easy casting thanks to measuring cup, Complete system, Non-labelled and non-toxic, Vibration damping, Removable, Flexible, Halogen-free, UV rays stable, Seals and protects all electrical installations
Applications Indoor areas (also with high humidity levels), Outdoor, Branch and connection boxes, Protection against moisture (IP 68 protection class in a suitable box), For electrical systems up to 1 kV
More Information
Content 400 ml
Viscosity (23 °C) 1000 mPas
Viscosity (associated standard) ISO 2555
Pot life (23 °C) 15 minutes
Pot life (23 °C) (associated standard) IEC 60684-2
Density 0,97 g/cm³
Mixing ratio 1 : 1
Working temperature min 15 °C
Working temperature max 30 °C
Heat resistance min -40 °C
Heat resistance max 150 °C
Specific volume resistivity ≥ 2 x 10¹⁴ Ω cm
Specific volume resistivity (associated standard) HD 429
Dielectric strength ≥ 15 kV/mm
Dielectric strength (associated standard) IEC 60243-1
More Information

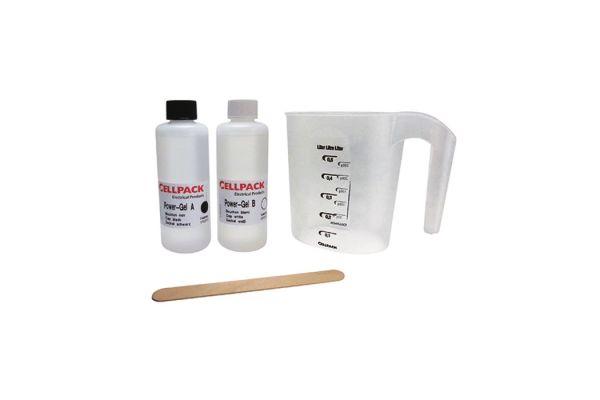

Delivery scope POWER GEL component A and component B in bottles, measuring cup and spatula, Spatula
Shelf life description Unlimited shelf life
Storage temperatur min 0 °C
Storage temperatur max 40 °C
Country of origin Germany
Customs tariff number 39100000
EAN/GTIN 4010311164793
Alternate quantity 1 1 1
Alternative unit of measure Piece Case Pal. OW
Base quantity 1 1 378
Base unit of measure Piece Piece Piece
Lenght (mm) 164 164 1200
Width (mm) 86 86 800
Height (mm) 155 155 1130
Net weight (kg) 0,558 0,558 210,924
Gross weight (kg) 0,558 0,558 229,124
