PB 4 GG

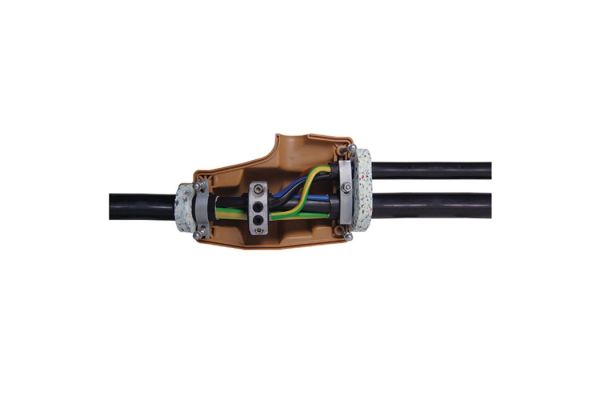

Cast resin branch joint
with strain relief for polymeric cables and mass-impreg. paper cables
Art. no.
329572
| Product family | P...GG |
|---|---|
| Product family | P...GG |
| Main description | Cast resin branch joint |
| Sub description | with strain relief for polymeric cables and mass-impreg. paper cables |
| Family description | Universally suitable for branching polymeric cables insulated with PVC, PE, XLPE and paper (e.g. N(A)YY, N(A)KBA, GN-CLN, TT) with or without concentric conductor and mass-impregnated paper cables. With hydrolysis resistance PUR cast resin GG. Suitable for branch clamps on copper and aluminium conductors. |
| Optional accessory | For size 2…4 branch clamp KP (see Connecting technology), For size 5…7 branch clamp HE 1/70/150 (see Connecting technology), Cleaner UNIVERSAL CLEANER 121 (see Accessories) |
| Characteristics | Compact design, Integrated strain relief, High-quality brown shockproof plastic shell, Resistant to chemical agents, Stabilized against UV rays, Resistant to alkaline earth elements, Longitudinally and transversely watertight, High electrical insulating values, High mechanical strength, Ready for immediate operation, Quick, safe and easy assembly, Large filler aperture to facilitate casting, Integrated strain relief |
| Applications | Indoor, Outdoor, Underground, Water, Installation ducts |
| Voltage levels | U0/U (Um) 0,6/1 (1,2) kV |
|---|---|
| Test standards | EN 50393 |
| Length L | 532 mm |
| Heigth H | 200 mm |
| Diameter D | 120 mm |
| Diameter cable Main cable min | 30 mm |
| Diameter cable Main cable max | 50 mm |
| Diameter cable Branch cable min | 27 mm |
| Diameter cable Branch cable max | 44 mm |
| Nominal cross section Main cable Mass-impregnated paper cable per conductor 3x min | 10 mm² |
| Nominal cross section Main cable Mass-impregnated paper cable per conductor 3x max | 16 mm² |
| Nominal cross section Main cable Mass-impregnated paper cable per conductor 4x min | 10 mm² |
| Nominal cross section Main cable Mass-impregnated paper cable per conductor 4x max | 16 mm² |
| Nominal cross section Main cable Polymeric cable unarmoured per conductor 4x min | 95 mm² |
| Nominal cross section Main cable Polymeric cable unarmoured per conductor 4x max | 150 mm² |
| Nominal cross section Branch cable Polymeric cable unarmoured per conductor 4x min | 50 mm² |
| Nominal cross section Branch cable Polymeric cable unarmoured per conductor 4x max | 95 mm² |
| Nominal cross section Branch cable Polymeric cable with concentric conductor per conductor 4x min | 50 mm² |
| Nominal cross section Branch cable Polymeric cable with concentric conductor per conductor 4x max | 95 mm² |
| Delivery scope | Sealing gaskets, Hydrolysis resistance PUR cast resin GG, Packed in practical and easy-to-use two-chamber bags, Plastic shell with integrated strain relief, Hexagon head screws and nuts, Assembly instructions | ||
|---|---|---|---|
| Shelf life | 24 Month | ||
| Country of origin | Germany | ||
| Customs tariff number | 39095090 | ||
| EAN/GTIN | 4010311162690 | ||
| Alternate quantity | 1 | 1 | 1 |
| Alternative unit of measure | Piece | Case | Pal. EU |
| Base quantity | 1 | 1 | 12 |
| Base unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 573 | 573 | 1200 |
| Width (mm) | 228 | 228 | 800 |
| Height (mm) | 310 | 310 | 1130 |
| Net weight (kg) | 10,673 | 10,673 | 128,076 |
| Gross weight (kg) | 10,673 | 10,673 | 157,076 |
