CHESK-3F(A) 12kV 25-95

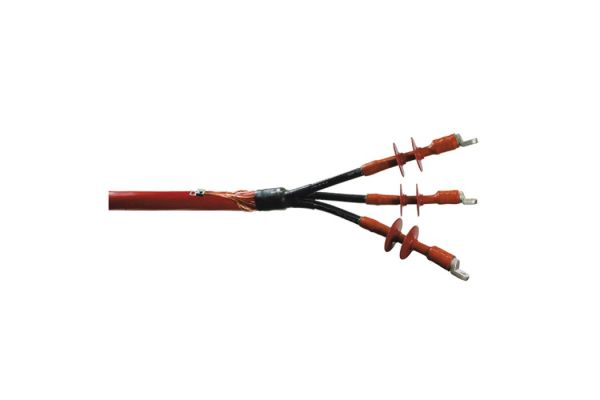

3-core outdoor cable termination
with screw cable lugs for 3-core polymeric cables
Art. no.
309813
| Product family | CHESK-3F(A) |
|---|---|
| Product family | CHESK-3F(A) |
| Main description | 3-core outdoor cable termination |
| Sub description | with screw cable lugs for 3-core polymeric cables |
| Family description | Hybrid cable terminations CHESK-3F(A) are suitable for all 3-core polymericinsulated cables (PVC, PE, XLPE, EPR) with different types of semi-conductive layers (graphite-coated, removable or strippable) and screen design (copper wire or tape). With screw cable lugs. |
| Notes | Can be used also for cables Um = 7,2 kV, then the minimum diameter over conductor insulation has to be checked. |
| Optional accessory | EGA earthing kit for cables with tape screen (see Connecting technology) |
| Characteristics | Flexible silicone stress control elements ensure reliable stress control under all operating conditions, Combination of slip-on and heat shrinkable components, Wide cross-section range, Quick, safe and easy assembly, Ready for immediate operation |
| Applications | Outdoor |
| Voltage levels | U0/U (Um) 6/10 (12) kV - 6,35/11 (12) kV |
|---|---|
| Test standards | CENELEC HD 629.1 |
| Length L | 1200 mm |
| Diameter over core insulation after removal of the outer conductive layer min | 12,6 mm |
| Number of sheds per phase | 1 Pieces |
| Diameter shed | 80 mm |
| Nominal cross section 12 kV min | 25 mm² |
| Nominal cross section 12 kV max | 95 mm² |
| Delivery scope | Spreader cap, Heat shrinkable tube (tracking resistant), Heat shrinkable tube medium-walled, Silicone field control elements, Silicone sheds, Binding wire, Sealing tape, Assembly material, Screw cable lugs, Assembly instructions | ||
|---|---|---|---|
| Shelf life description | Unlimited shelf life | ||
| Country of origin | Germany | ||
| Customs tariff number | 85469090 | ||
| EAN/GTIN | 4010311164977 | ||
| Alternate quantity | 1 | 1 | 1 |
| Alternative unit of measure | Piece | Carton | Pal. OW |
| Base quantity | 1 | 1 | 42 |
| Base unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 720 | 720 | 1200 |
| Width (mm) | 155 | 155 | 800 |
| Height (mm) | 140 | 140 | 1130 |
| Net weight (kg) | 1,89 | 1,89 | 79,38 |
| Gross weight (kg) | 1,89 | 1,89 | 97,58 |
