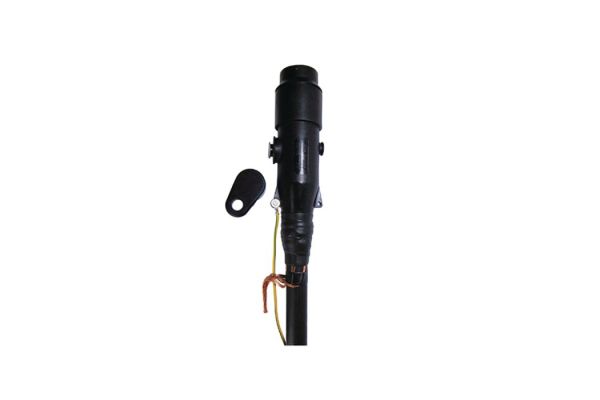

CGS 250A 24kV 25-95 M EGA

Straight separable connector
for polymeric cables for outer cone system terminals type A
Art. no.
295283
More Information
Product family CGS 250A
Product family CGS 250A
Main description Straight separable connector
Sub description for polymeric cables for outer cone system terminals type A
Family description Cellplux straight separable connectors CGS are suitable for connecting all polymeric-insulated 1-core cables (PVC, PE, XLPE, EPR), with different types of semi-conductive layers (graphite-coated or strippable) and screen design (wire or tape screen) for switching equipment and transformers having an outer cone system type A, up to maximum network voltage of 24 kV in accordance with EN 50180 and EN 50181.
Notes Separable connectors for alternative cross-sections and for class 5 conductors on request
Optional accessory EGA earthing kit for cables with tape screen (see Connecting technology)
Characteristics With capacitive measuring point for voltage checking, Individually tested, Outer semi-conductive layer made of semi-conductive EPDM provides protection from exposed electrical parts, Cable sheath insulation fault test may be performed while under voltage, For both copper and aluminium conductors, Quick, safe and easy assembly, Suitable for a wide range of applications due to integrated screw cable lug
Applications Indoor
More Information
Voltage levels U0/U (Um) 6/10 (12) kV - 12,7/22 (24) kV
Test standards CENELEC HD 629.1
Width B 248 mm
Heigth H 110 mm
Diameter over core insulation after removal of the outer conductive layer min 14,7 mm
Nominal cross section 12 kV min 50 mm²
Nominal cross section 12 kV max 95 mm²
Nominal cross section 17,5 kV min 25 mm²
Nominal cross section 17,5 kV max 95 mm²
Nominal cross section 24 kV min 25 mm²
Nominal cross section 24 kV max 95 mm²
More Information
Delivery scope Set of 3 separable connectors, Silicone field control elements, Earthing set, Assembly material, Screw cable lugs for main conductor, Assembly instructions
Shelf life description Unlimited shelf life
Country of origin Germany
Customs tariff number 85479000
EAN/GTIN 4010311152189
Alternate quantity 1 1 1
Alternative unit of measure Piece Carton Pal. OW
Base quantity 1 1 64
Base unit of measure Piece Piece Piece
Lenght (mm) 374 374 1200
Width (mm) 289 289 800
Height (mm) 117 117 1130
Net weight (kg) 3,054 3,054 195,456
Gross weight (kg) 3,054 3,054 213,656
