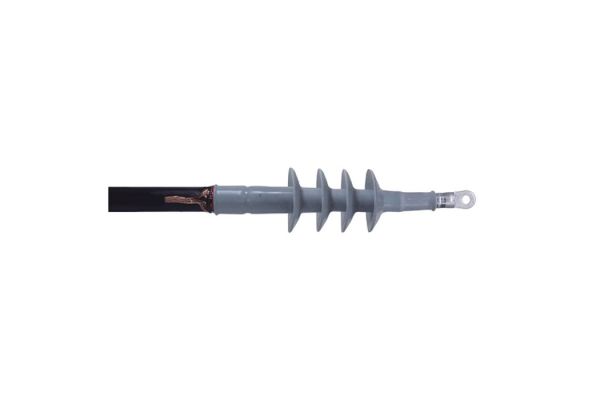

CAE-F 36kV 50-240
1-core outdoor slip-on cable termination
for 1-core polymeric cables
Art. no.
199198
| Product family | CAE-F |
|---|---|
| Product family | CAE-F |
| Main description | 1-core outdoor slip-on cable termination |
| Sub description | for 1-core polymeric cables |
| Family description | Contrax cable terminations CAE-F are suitable for all 1-core polymeric-insulated cables (PVC, PE, XLPE, EPR) with different types of semi-conductive layers (graphitecoated, removable or strippable) and screen design (wire or tape). Suitable for compression cable lugs. |
| Notes | Can be used also for cables Um = 7,2 kV, then the minimum diameter over conductor insulation has to be checked. |
| Optional accessory | EGA earthing kit for cables with tape screen (see Connecting technology), Compression cable lugs (see Connecting technology) |
| Characteristics | Silicone slip-on components for quick, safe and easy assembly, Wide cross-section range, Ready for immediate operation |
| Applications | Outdoor |
| Voltage levels | U0/U (Um) 18/30 (36) kV - 19/33 (36) kV |
|---|---|
| Test standards | CENELEC HD 629.1 |
| Length L | 440 mm |
| Diameter over core insulation after removal of the outer conductive layer min | 23,1 mm |
| Number of sheds per phase | 5 Pieces |
| Diameter shed | 93 mm |
| Nominal cross section 36 kV min | 50 mm² |
| Nominal cross section 36 kV max | 240 mm² |
| Delivery scope | 3 One-piece slip-on silicone cable terminations with integrated stress control element, Silicone tubes, Sealing tape, Assembly material, Assembly instructions | ||
|---|---|---|---|
| Shelf life description | Unlimited shelf life | ||
| Country of origin | Germany | ||
| Customs tariff number | 85469090 | ||
| EAN/GTIN | 4010311054865 | ||
| Alternate quantity | 1 | 1 | 1 |
| Alternative unit of measure | Piece | Carton | Pal. OW |
| Base quantity | 1 | 1 | 30 |
| Base unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 486 | 486 | 1200 |
| Width (mm) | 254 | 254 | 800 |
| Height (mm) | 197 | 197 | 1130 |
| Net weight (kg) | 1,393 | 1,393 | 41,79 |
| Gross weight (kg) | 1,393 | 1,393 | 59,99 |
