CHE-F 17kV 10-16

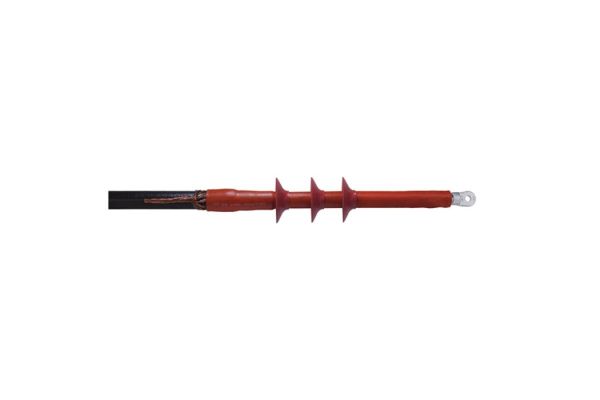

1-core outdoor cable termination
for 1-core polymeric cables
Art. no.
More Information
Product family CHE-F
Main description 1-core outdoor cable termination
Sub description for 1-core polymeric cables
Family description Hybrid cable terminations CHE-F are suitable for all 1-core polymeric-insulated cables (PVC, PE, XLPE, EPR) with different types of semi-conductive layers (graphitecoated, removable or strippable) and screen design (copper wire or tape). Suitable for compression or screw cable lugs.
Characteristics Flexible silicone stress control elements ensure reliable stress control under all operating conditions, Combination of slip-on and heat shrinkable components, Wide cross-section range, Quick, safe and easy assembly, Ready for immediate operation
Applications Outdoor
Family notes Can be used also for cables Um = 7,2 kV, then the minimum diameter over conductor insulation has to be checked.
Optional accessory EGA earthing kit for cables with tape screen (see Connecting technology), Compression cable lugs (see Connecting technology)
More Information
Voltage levels U0/U (Um) 8,7/15 (17,5) kV
Test standards CENELEC HD 629.1
Length L 500 mm
Diameter over core insulation after removal of the outer conductive layer min 9,9 mm
Diameter over core insulation after removal of the outer conductive layer max 9,9 mm
Number of sheds per phase 2 Pieces
Diameter shed 80 mm
Nominal cross section 17,5 kV min 10 mm²
Nominal cross section 17,5 kV max 16 mm²
More Information
Delivery scope Heat shrinkable tube (tracking resistant), Silicone field control elemens, Silicone sheds, 1 Set for 3 phases, Sealing tape, Assembly material, Assembly instructions
Shelf life description Unlimited shelf life
Country of origin Germany
Customs tariff number 85469090
EAN-UPC 4010311046969
Alternate quantity 1 1 1
Alternative unit of measure Piece Carton Pal. OW
Base quantity 1 1 84
Base unit of measure Piece Piece Piece
Lenght 385 385 1200
Width 190 190 800
Height 134 134 1130
Dimension unit Millimetres Millimetres Millimetres
Volume 9,802 9,802 1084,8
Volume unit Cubic decimetres Cubic decimetres Cubic decimetres
Net weight 0,957 0,957 80,388
Gross weight 0,957 0,957 98,588
Weight unit Kilogram Kilogram Kilogram
