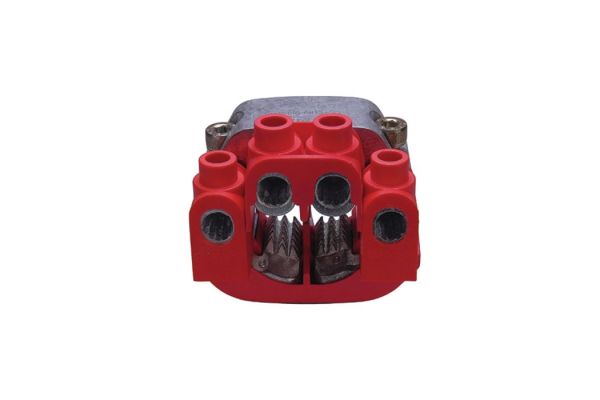

HE 1/70/150
Branch clamp
for house connections for low voltage
Art. no.
193644
| Product family | HE 1/70/150 |
|---|---|
| Product family | HE 1/70/150 |
| Main description | Branch clamp |
| Sub description | for house connections for low voltage |
| Family description | For branching of 4-core SM/SE low voltage cables up to 1 kV. |
| Characteristics | Consists of sectional blocks with contacts, separators and inner hexagonal screws, Connection of branch cable in visible area above the main cable, Can be installed / operated while under voltage, Safe and easy to handle |
| Applications | House connections, SM (Class 2)/SE (Class 1) according to DIN EN/IEC 60228 (VDE |
| Nominal cross section Main cable SE min | 95 |
|---|---|
| Nominal cross section Main cable SE max | 150 |
| Nominal cross section Main cable SM min | 70 |
| Nominal cross section Main cable SM max | 120 |
| Nominal cross section Branch cable min | 16 |
| Nominal cross section Branch cable max | 50 |
| Number of conductors | 4 Pieces |
| Delivery scope | Branch clamp, Insulating wedges, Assembly instructions | ||
|---|---|---|---|
| Country of origin | India | ||
| Customs tariff number | 85369010 | ||
| EAN/GTIN | 4010311077628 | ||
| Alternate quantity | 1 | 1 | 1 |
| Alternative unit of measure | Piece | Bag1 | Carton |
| Base quantity | 1 | 1 | 24 |
| Base unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 130 | 130 | 310 |
| Width (mm) | 105 | 105 | 300 |
| Height (mm) | 60 | 60 | 220 |
| Net weight (kg) | 0,75 | 0,75 | 18 |
| Gross weight (kg) | 0,75 | 0,75 | 18,3 |
