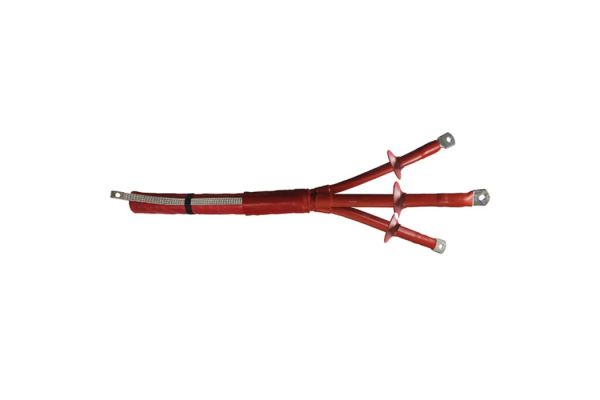

SEEV-F 16-50
3-core outdoor cable termination
for armoured 3-core polymeric cables up to 7.2 kV
Art. no.
148152
| Product family | SEEV-F |
|---|---|
| Main description | 3-core outdoor cable termination |
| Sub description | for armoured 3-core polymeric cables up to 7.2 kV |
| Family description | Cable terminations SEEV-F for outdoor applications are suitable to cover armoured 3-core polymeric cables (PVC, PE, XLPE, EPR) without semi-conductive layer. Suitable for compression or screw cable lugs. |
| Optional accessory | Cable lugs (see Connecting technology) |
| Characteristics | Compact dimensions, Wide conductor and cross-section range, High mechanical strength, Quick, safe and easy assembly |
| Applications | Outdoor |
| Voltage levels | U0/U (Um) 3,6/6 (7,2) kV - 3,8/6,6 (7,2) kV |
|---|---|
| Length L | 400 mm |
| Diameter shed | 80 mm |
| Nominal cross section Polymeric cable armoured min | 16 mm² |
| Nominal cross section Polymeric cable armoured max | 50 mm² |
| Delivery scope | Core insulating tubes (tracking resistant), Spreader cap (tracking resistant), Filling tape, Silicone sheds, Earthing accessories, Sealing tape, Assembly instructions | |
|---|---|---|
| Shelf life description | Unlimited shelf life | |
| Country of origin | Germany | |
| Customs tariff number | 39173900 | |
| EAN/GTIN | 4010311042978 | |
| Alternate quantity | 1 | 1 |
| Alternative unit of measure | Piece | Bag1 |
| Base quantity | 1 | 1 |
| Base unit of measure | Piece | Piece |
| Lenght (mm) | 450 | 450 |
| Width (mm) | 100 | 100 |
| Height (mm) | 50 | 50 |
| Net weight (kg) | 0,638 | 0,638 |
| Gross weight (kg) | 0,638 | 0,638 |
