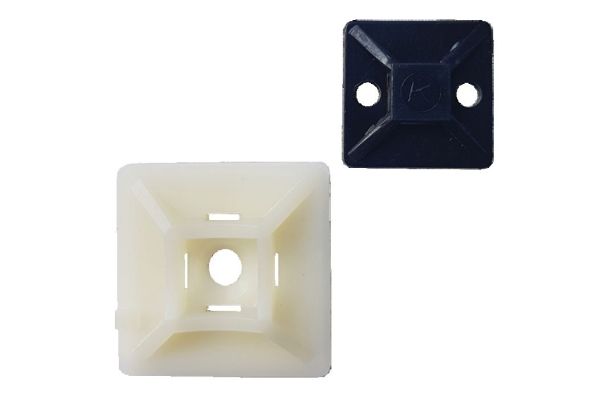

| Product family | KZB |
|---|---|
| Product family | KZB |
| Main description | Fastening elements |
| Sub description | for cable ties |
| Family description | Self-adhesive cable tie-fastening elements, good adhesion on smooth surfaces. |
| Characteristics | Adhesive film to facilitate installation in hard-to-reach areas, Resistant to water, cleaning agents and alcohol, Conditionally resistant to aliphatic and aromatic solvents, Self-extinguishing |
| Applications | Affixing of cable ties, Prefabrication or subsequent assembly e.g. of office equipment, lifts, motor vehicles and control cubicles |
| Materials | Polyamide 6.6 |
|---|---|
| Cable tie width max | 4 mm |
| Length L | 19 mm |
| Width B | 19 mm |
| Heigth H | 4,5 mm |
| Diameter D | 4,75 mm |
| Colours | natural color |
| Delivery scope | 100 Cable tie-fastening elements | |||
|---|---|---|---|---|
| Country of origin | Italy | |||
| Customs tariff number | 39269097 | |||
| EAN/GTIN | 4010311007618 | |||
| Alternate quantity | 1 | 1 | 1 | 1 |
| Alternative unit of measure | Piece | Bag | Pack | Carton |
| Base quantity | 1 | 100 | 100 | 4000 |
| Base unit of measure | Piece | Piece | Piece | Piece |
| Lenght (mm) | 170 | 225 | 225 | 410 |
| Width (mm) | 10,9 | 110 | 110 | 310 |
| Height (mm) | 3 | 15 | 15 | 315 |
| Net weight (kg) | 0,001 | 0,1 | 0,1 | 4 |
| Gross weight (kg) | 0,001 | 0,105 | 0,105 | 4,3 |
