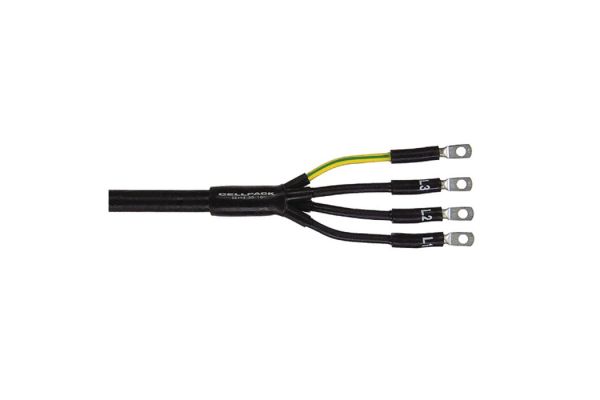

SFEX4 150-300

Heat shrinkable cable termination
for unarmoured polymeric cables and conductors
Art. no.
145449
More Information
Product family SFEX
Product family SFEX
Main description Heat shrinkable cable termination
Sub description for unarmoured polymeric cables and conductors
Family description Universally suitable for connecting the polymeric-insulated cables to electrical equipment, for cables insulated with PE, XLPE, PVC and cable sheaths insulated with PVC or PE. Suitable for compression cable lugs on aluminium and copper cables.
Notes SFEX4 for power cables with green-yellow wire marking, Waterproof cable lugs must be used for outdoor cable terminations.
Optional accessory Compression cable lugs (see Connecting technology)
Characteristics Compact dimensions, Wide conductor and cross-section range, Resistant to chemical agents, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Halogen-free, 100 % waterproof, High electrical insulating values, High mechanical strength
Applications Outdoor
More Information
Voltage levels U0/U (Um) 0,6/1 (1,2) kV
Test standards EN 50393
Nominal cross section Polymeric cable unarmoured per conductor 4x min 150 mm²
Nominal cross section Polymeric cable unarmoured per conductor 4x max 300 mm²
More Information
Delivery scope Core insulating tubes, Spreader cap, Sealing tubes, Cleaning tissue, Emery cloth, Assembly instructions
Shelf life description Unlimited shelf life
Country of origin Germany
Customs tariff number 39174000
EAN/GTIN 4010311004716
Alternate quantity 1 1
Alternative unit of measure Piece Bag1
Base quantity 1 1
Base unit of measure Piece Piece
Lenght (mm) 620 620
Width (mm) 215 215
Height (mm) 105 105
Net weight (kg) 0,469 0,469
Gross weight (kg) 0,469 0,469
