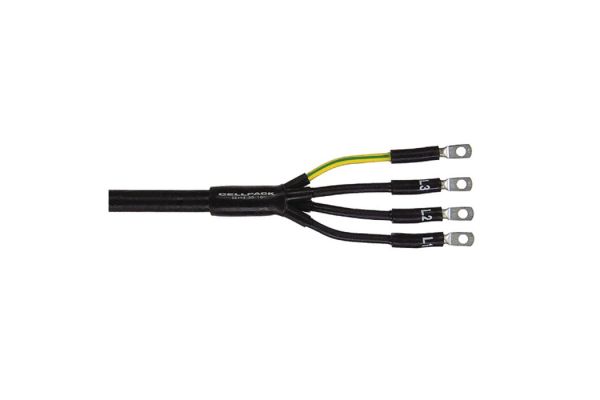

SFEX4 70-150
Heat shrinkable cable termination
for unarmoured polymeric cables and conductors
Art. no.
145444
| Product family | SFEX |
|---|---|
| Product family | SFEX |
| Main description | Heat shrinkable cable termination |
| Sub description | for unarmoured polymeric cables and conductors |
| Family description | Universally suitable for connecting the polymeric-insulated cables to electrical equipment, for cables insulated with PE, XLPE, PVC and cable sheaths insulated with PVC or PE. Suitable for compression cable lugs on aluminium and copper cables. |
| Notes | SFEX4 for power cables with green-yellow wire marking, Waterproof cable lugs must be used for outdoor cable terminations. |
| Optional accessory | Compression cable lugs (see Connecting technology) |
| Characteristics | Compact dimensions, Wide conductor and cross-section range, Resistant to chemical agents, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Halogen-free, 100 % waterproof, High electrical insulating values, High mechanical strength |
| Applications | Outdoor |
| Voltage levels | U0/U (Um) 0,6/1 (1,2) kV |
|---|---|
| Test standards | EN 50393 |
| Nominal cross section Polymeric cable unarmoured per conductor 4x min | 70 mm² |
| Nominal cross section Polymeric cable unarmoured per conductor 4x max | 150 mm² |
| Delivery scope | Core insulating tubes, Spreader cap, Sealing tubes, Cleaning tissue, Emery cloth, Assembly instructions | ||
|---|---|---|---|
| Shelf life description | Unlimited shelf life | ||
| Country of origin | Germany | ||
| Customs tariff number | 39174000 | ||
| EAN/GTIN | 4010311004709 | ||
| Alternate quantity | 1 | 1 | 1 |
| Alternative unit of measure | Piece | Bag1 | Carton |
| Base quantity | 1 | 1 | 10 |
| Base unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 509 | 509 | 580 |
| Width (mm) | 221 | 221 | 385 |
| Height (mm) | 75 | 75 | 335 |
| Net weight (kg) | 0,332 | 0,332 | 3,32 |
| Gross weight (kg) | 0,332 | 0,332 | 3,62 |
