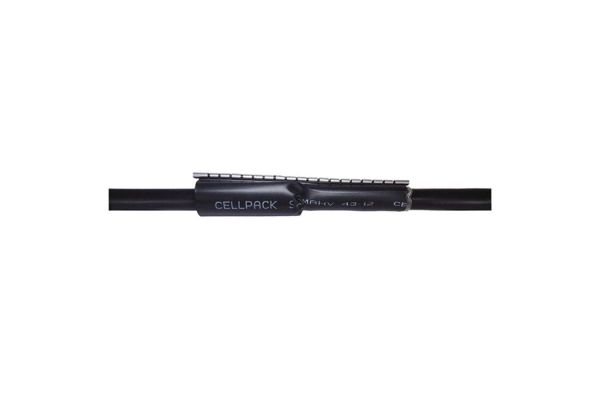

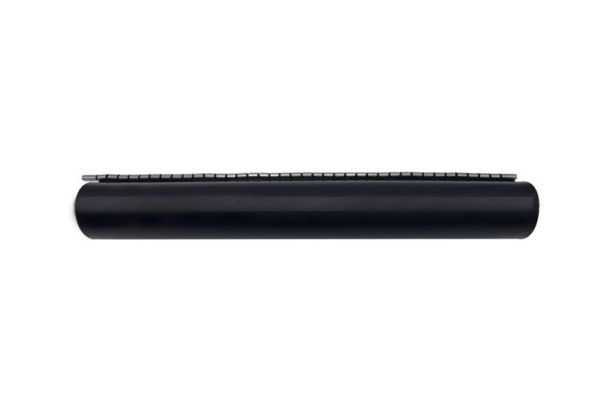

SRMAHV 115-30 / 250
Heat shrinkable repair sleeve
with adhesive and stainless steel channel
Art. no.
143661
Product family | SRMAHV |
---|---|
Main description | Heat shrinkable repair sleeve |
Sub description | with adhesive and stainless steel channel |
Family description | For repairing damaged sheaths of all polymeric- and rubber-insulated cables and conductors. |
Characteristics | Medium wall, With hot melt adhesive, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Non-corrosive, Infusible, Halogen-free, Superior electrical properties, High tensile strength, Resistant to cold flow (thermally stable), Maximum inner pressure: 1.5 bar |
Applications | Sealing, Repair of damaged cable sheaths |
Test standards | IEC 60684-2 |
---|---|
Materials | Cross-linked polyolefin, Free of lead and cadmium |
Length L | 250 mm |
Colours | black |
Inner diameter before shrinking (mm) | 130 mm |
Inner diameter after shrinking (mm) | 30 mm |
Recovered wall thickness | 2,3 mm |
Application range shrinking min | 30 mm |
Application range shrinking max | 115 mm |
Hardness | 50 Shore D |
Hardness(a ssociated standard) | IEC 60684-2 |
Elongation at break | 300 % |
Elongation at break (associated standard) | IEC 60684-2 |
Tensile strength at break | 13 MPa |
Tensile strength at break (associated standard) | IEC 60684-2 |
Longitudinal shrinkage | +/- 10 % |
Longitudinal shrinkage (associated standard) | IEC 60684-2 |
Shrink ratio | 3 : 1 |
Shrink ratio (associated standard) | IEC 60684-2 |
Operating temperature range min | -40 °C |
Operating temperature range max | 120 °C |
Operating temperature range (associated standard) | IEC 60684-2 |
Shrinkage temperature | > 125 °C |
Flexibility at low temperatures | -40 °C |
Flexibility at low temperatures (associated standard) | IEC 60684-2 |
Thermal ageing (168 h bei 150 °C): Tensile strength at break | 12 MPa |
Thermal ageing (168 h bei 150 °C) (associated standard) | IEC 60684-2 |
Specific volume resistivity | 10¹⁵ Ω cm |
Specific volume resistivity (associated standard) | IEC 60684-2 |
Dielectric strength | 12 kV/mm |
Dielectric strength (associated standard) | IEC 60684-2 |
Dielectric constant | 5 |
Dielectric constant (associated standard) | IEC 60684-2 |
Corrosion | none |
Corrosion (associated standard) | IEC 60684-2 |
Resistance to fungus and decay | Rate 1 |
Resistance to fungus and decay (associated standard) | IEC 60684-2 |
Delivery scope | Heat shrinkable repair sleeve, Stainless steel channel, Assembly instructions | ||
---|---|---|---|
Shelf life description | Unlimited shelf life | ||
Country of origin | Germany | ||
Customs tariff number | 39173900 | ||
EAN-UPC | 4010311002262 | ||
Alternate quantity | 1 | 1 | 1 |
Alternative unit of measure | Piece | Bag1 | Carton |
Base quantity | 1 | 1 | 20 |
Base unit of measure | Piece | Piece | Piece |
Lenght | 274 | 274 | 480 |
Width | 227 | 227 | 400 |
Height | 55 | 55 | 370 |
Dimension unit | Millimetres | Millimetres | Millimetres |
Volume | 3,421 | 3,421 | 71,04 |
Volume unit | Cubic decimetres | Cubic decimetres | Cubic decimetres |
Net weight | 0,201 | 0,201 | 4,02 |
Gross weight | 0,201 | 0,201 | 4,32 |
Weight unit | Kilogram | Kilogram | Kilogram |
