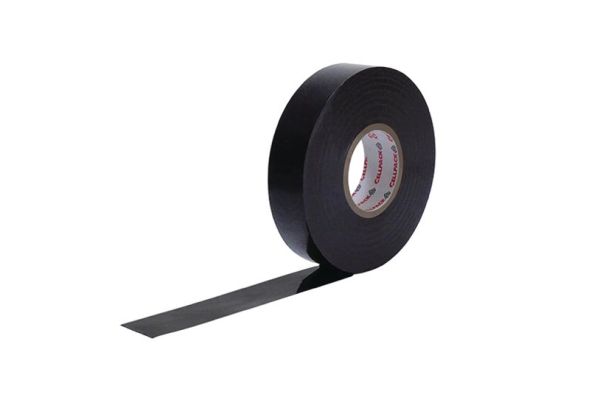

No. 228 black
PVC insulation tape
for marking bundling and insulating
Art. no.
249644
Product family | No. 228 |
---|---|
Main description | PVC insulation tape |
Sub description | for marking bundling and insulating |
Family description | Elastic, UV-resistant PVC insulating tape |
Characteristics | Synthetic rubber adhesive, Moisture-resistant, Oil-resistant, Resistant to dilute acids and alkalis, Stabilized against UV rays, High flexibility, Good adhesive properties, Easy processing |
Applications | Sealing, Padding of cable insulation, Bundling, Reinforcing, As insulation of electrical and telecommunication cables, Marking of insulation with high mechanical tension requirements |
Materials | PVC |
---|---|
Length L | 20 m |
Width B | 38 mm |
Thickness | 0,18 mm |
Colours | black |
Elongation at break | 300 % |
Elongation at break (associated standard) | IEC 60454-2 |
Tensile strength at break | 35 N/cm |
Tensile strength at break (associated standard) | IEC 60454-2 |
Unwinding force | 3,5 N/cm |
Unwinding force (associated standard) | IEC 60454-2 |
Flammability | self-extinguishing |
Flammability (associated standard) | IEC 60454-2 |
Elastic modulus to 35% | 3,5 MPa |
Elastic modulus to 35% (associated standard) | IEC 60454-2 |
Operation temperature min. | -18 °C |
Operation temperature max. | 105 °C |
Operation temperature (associated standard) | IEC 60454-2 |
Dielectric strength | 45 kV/mm |
Dielectric strength (associated standard) | IEC 60454-2 |
Delivery scope | PVC insulation tape | |||
---|---|---|---|---|
Shelf life | 24 Month | |||
Storage temperatur min | 5 °C | |||
Storage temperatur max | 25 °C | |||
Country of origin | Taiwan | |||
Customs tariff number | 39191012 | |||
EAN/GTIN | 4010311133102 | |||
Packaging type | Piece | Pack | Carton | Pal. OW |
Content quantity | 1 | 5 | 125 | 1000 |
Unit of measure | Piece | Piece | Piece | Piece |
Lenght (mm) | 81 | 81 | 405 | 1200 |
Width (mm) | 81 | 81 | 405 | 800 |
Height (mm) | 38 | 190 | 195 | 500 |
Net weight (kg) | 0,15 | 0,75 | 18,75 | 150 |
Gross weight (kg) | 0,15 | 0,755 | 19,05 | 168,2 |
