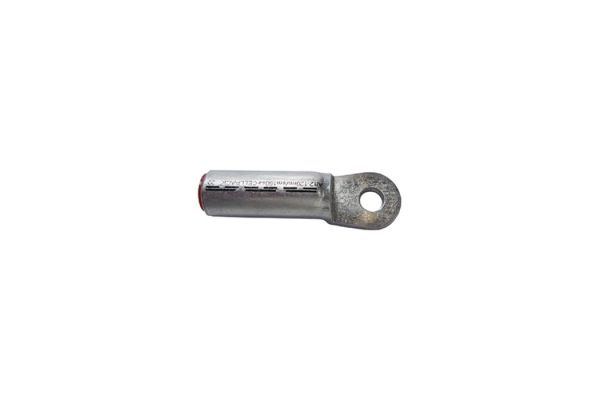

DK-AL-LD 150/12
Compression cable lug Al
longitudinally sealed for low and medium voltage
Art. no.
194937
| Product family | DK-AL-LD |
|---|---|
| Main description | Compression cable lug Al |
| Sub description | longitudinally sealed for low and medium voltage |
| Family description | Cable lug (hexagonally compressed) for aluminium conductors, suitable for indoor and outdoor cable terminations. |
| Notes | To be used with suitable crimping tool with DIN inserts |
| Applications | Cable lug for aluminium conductor RM/SM (Class 2), RE and SE (Class 1) according to DIN EN 60228 (VDE 0295) |
| Test standards | DIN 46329 |
|---|---|
| Materials | Blank aluminium |
| Length L | 90 mm |
| Width B | 30 mm |
| Diameter D1 | 16,3 mm |
| Diameter D2 | 13 mm |
| Diameter D3 | 25 mm |
| Nominal cross section RM/SM | 150 mm² |
| Nominal cross section SE | 185 mm² |
| Press die code K | 25 mm |
| Length A | 60 mm |
| Delivery scope | Compression cable lug | ||
|---|---|---|---|
| Country of origin | Poland | ||
| Customs tariff number | 85369010 | ||
| EAN/GTIN | 4010311052939 | ||
| Packaging type | Piece | Bag1 | Carton |
| Content quantity | 1 | 1 | 50 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 110 | 110 | 290 |
| Width (mm) | 30 | 30 | 195 |
| Height (mm) | 25 | 25 | 145 |
| Net weight (kg) | 0,088 | 0,088 | 4,4 |
| Gross weight (kg) | 0,088 | 0,088 | 4,7 |
