DK-CU-V 70/12

Compression cable lug Cu
for low and medium voltage
Art. no.
126065
More Information
Product family DK-CU-V

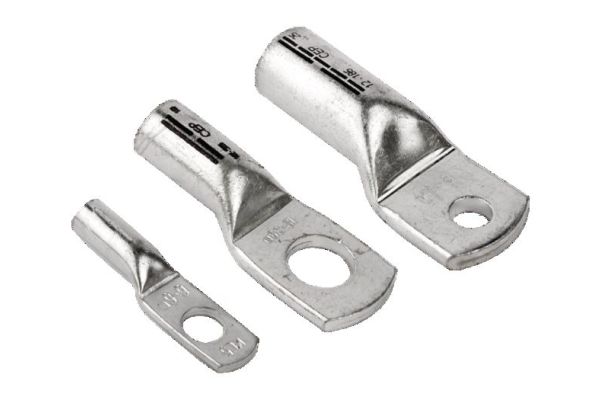

Main description Compression cable lug Cu
Sub description for low and medium voltage
Family description Cable lug (hexagonally compressed) for copper conductors, suitable for indoor cable terminations.
Notes To be used with suitable crimping tool with DIN inserts
Applications Cable lug recommended for copper conductors RM/SM (class 2) according to DIN EN 60228 (VDE 0295)
More Information
Test standards DIN 46235, IEC 61238
Materials Copper tin-plated
Length L 55 mm
Width B 24 mm
Diameter D1 11,5 mm
Diameter D2 13 mm
Diameter D3 16,5 mm
Nominal cross section min 70 mm²
Press die code K 16 mm
Length A 28 mm
More Information
Delivery scope Compression cable lug
Country of origin Poland
Customs tariff number 85369010
EAN/GTIN 4010311052502
Packaging type Piece Bag1 Carton
Content quantity 1 1 100
Unit of measure Piece Piece Piece
Lenght (mm) 70 70 195
Width (mm) 22 22 145
Height (mm) 15 15 97
Net weight (kg) 0,062 0,062 6,2
Gross weight (kg) 0,062 0,062 6,5
