Product family | RF |
---|---|

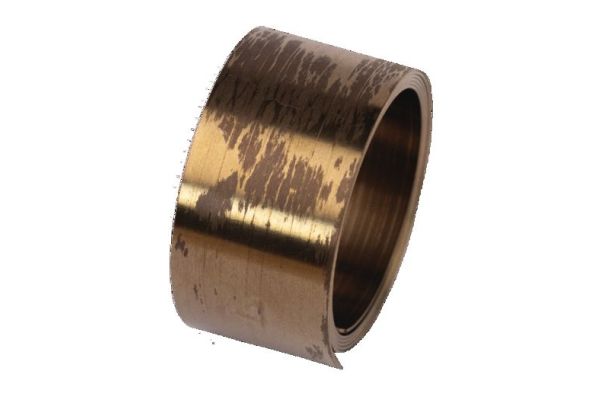

Main description | Pressure spring |
Sub description | for permanently elastic contact |
Family description | Used on lead and aluminum cable sheaths, cable screening tapes or wires and steel or aluminum armor wires. |
Notes | Pressure springs are no currentcarrying parts. |
Characteristics | Corrosion-resistant, Fatigue-proof, Guarantees consistent radial contact stress |
Applications | For cast resin, heat shrinkable and slip-on cable accessories, Enables solder-free electrical connection of metal cable components (screen, armouring, metal sheath) and earthing elements (copper grounding wire, cooper mesh joint etc.) |
Materials | Special stainless steel |
---|---|
Width B | 16 mm |
Diameter cable min | 33 mm |
Diameter cable max | 49 mm |
Outer diameter | 29 mm |
Delivery scope | Pressure springs | ||
---|---|---|---|
Country of origin | Great Britain | ||
Customs tariff number | 73209010 | ||
EAN/GTIN | 4010311199665 | ||
Packaging type | Piece | Bag | Pack |
Content quantity | 1 | 10 | 10 |
Unit of measure | Piece | Piece | Piece |
Lenght (mm) | 133 | 133 | 133 |
Width (mm) | 105 | 105 | 105 |
Height (mm) | 32 | 32 | 32 |
Net weight (kg) | 0,022 | 0,22 | 0,22 |
Gross weight (kg) | 0,022 | 0,223 | 0,223 |
