SMHSV4 240-400

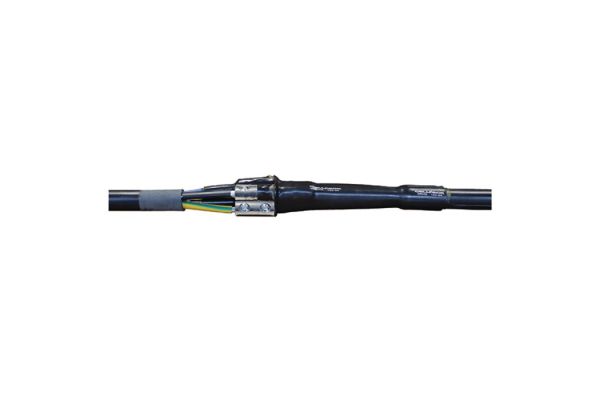

Heat shrinkable straight-through joint
with screw connectors for unarmoured polymeric cables and conductors
Art. no.
349967
More Information
Product family SMHSV
Main description Heat shrinkable straight-through joint
Sub description with screw connectors for unarmoured polymeric cables and conductors
Family description Universally suitable for connecting polymeric cables or conductors insulated with PVC, PE and XLPE (e.g. N(A)YY, NYM, TT). With mechanical connectors with shear head bolts, suitable for aluminium or copper cables.
Characteristics Compact dimensions, Wide conductor and cross-section range, Resistant to chemical agents, Resistant to alkaline earth elements, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Halogen-free, Transversely waterproof, High electrical insulating values, High mechanical strength
Applications Indoor, Outdoor, Underground, Water, Installation ducts, Ductwork
More Information
Voltage levels U0/U (Um) 0,6/1 (1,2) kV
Test standards EN 50393
Length L1 1100 mm
Nominal cross section Polymeric cable unarmoured per conductor 4x min 240 mm²
Nominal cross section Polymeric cable unarmoured per conductor 4x max 400 mm²
More Information
Delivery scope Outer sleeve, Inner sleeves, Screw connectors with shear head bolts, Cleaning tissue, Emery cloth, Assembly instructions
Shelf life description Unlimited shelf life
Country of origin Germany
Customs tariff number 39173900
EAN/GTIN 4010311169804
Packaging type Piece Bag1
Content quantity 1 1
Unit of measure Piece Piece
Lenght (mm) 1144 1144
Width (mm) 208 208
Height (mm) 157 157
Net weight (kg) 3,28 3,28
Gross weight (kg) 3,28 3,28
