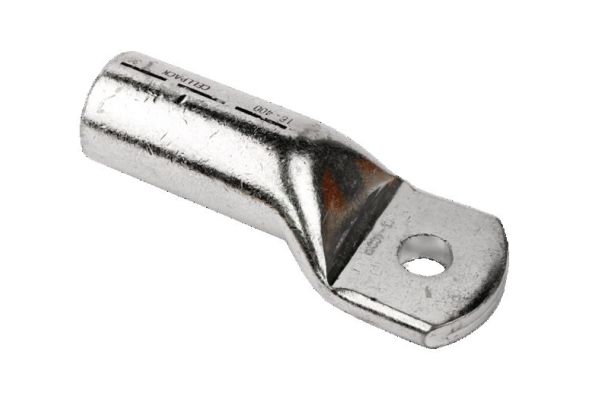

DK-CU-V 400/16

Compression cable lug Cu
for low and medium voltage
Art. no.
126096
More Information
Product family DK-CU-V
Main description Compression cable lug Cu
Sub description for low and medium voltage
Family description Cable lug (hexagonally compressed) for copper conductors, suitable for indoor cable terminations.
Notes To be used with suitable crimping tool with DIN inserts
Applications Cable lug recommended for copper conductors RM/SM (class 2) according to DIN EN 60228 (VDE 0295)
More Information
Test standards DIN 46235, IEC 61238
Materials Copper tin-plated
Length L 115 mm
Width B 55 mm
Diameter D1 27,5 mm
Diameter D2 17 mm
Diameter D3 38,5 mm
Nominal cross section min 400 mm²
Press die code K 38 mm
Length A 70 mm
More Information
Delivery scope Compression cable lug
Country of origin Poland
Customs tariff number 85369010
EAN/GTIN 4010311052649
Packaging type Piece Bag1 Carton
Content quantity 1 1 25
Unit of measure Piece Piece Piece
Lenght (mm) 142 142 290
Width (mm) 51 51 195
Height (mm) 37 37 145
Net weight (kg) 0,67 0,67 16,75
Gross weight (kg) 0,67 0,67 17,05
