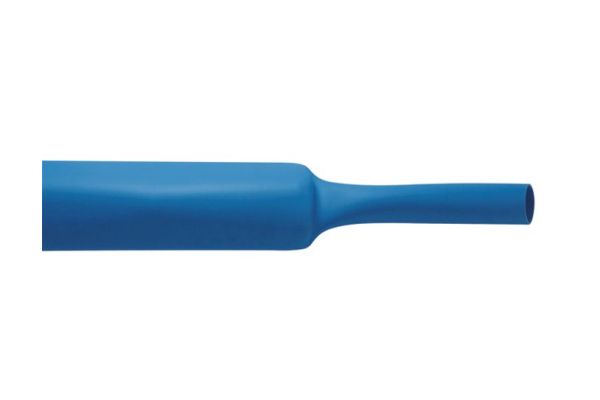

main product photo

SR1F 51-25.4

Heat shrinkable thin wall tube
shrink ratio 2 : 1 without adhesive
Art. no.
457321
Inquiry
Add to Wish List
More Information
Product family SR1F
Main description Heat shrinkable thin wall tube
Sub description shrink ratio 2 : 1 without adhesive
Family description The heat shrinkable tubes type SR1F are thin-walled, without adhesive with a shrinkage ratio of 2:1. Typical applications are the protection of cables against chemical influences as well as good mechanical protection.
Notes A standard spool may include sections which have been tied together., Other lengths available on request.
Characteristics Thin wall, Without adhesive, Inscribable, Resistant to chemical agents, Stabilized against UV rays, Non-corrosive, Free from paint-wetting inhibiting substances, Infusible, High tensile strength, Superior electrical properties, High tensile strength, Resistant to cold flow (thermally stable), High flexibility, Self-extinguishing (except transparent)
Applications Insulating, Bundling, Marking, Corrosion protection, Mechanical protection
Technical data
More Information
Test standards UL E172094, MIL-I-23053/5 Class 1
Materials Cross-linked polyolefin, Free of lead and cadmium
Selection Note lengths
Length L 1 m
Colours blue
Inner diameter before shrinking (inch) 2"
Inner diameter before shrinking (mm) 51 mm
Inner diameter after shrinking (mm) 25,4 mm
Recovered wall thickness 1,14 mm
Elongation at break 350 %
Elongation at break (associated standard) ASTM D 638
Tensile strength at break 13 MPa
Tensile strength at break (associated standard) ASTM D 638
Longitudinal shrinkage +/- 10 %
Longitudinal shrinkage (associated standard) ASTM D 2671
Shrink ratio 2 : 1
Shrink ratio (associated standard) IEC 811-1-1
Operating temperature range min -55 °C
Operating temperature range max 135 °C
Operating temperature range (associated standard) IEC 216
Shrinkage temperature > 90 °C
Burning behaviour self-extinguishing
Burning behaviour (associated standard) UL 224
Flexibility at low temperatures -55 °C
Flexibility at low temperatures (associated standard) ASTM D 2671
Operation temperature min. -55 °C
Operation temperature max. 135 °C
Operation temperature (associated standard) IEC 216
Specific volume resistivity 10¹⁴ Ω cm
Specific volume resistivity (associated standard) ASTM D 257
Dielectric strength ​​ 20 kV/mm
Dielectric strength (associated standard) ASTM D 2671
Corrosion none
Corrosion (associated standard) ASTM D 2671
Resistance to fungus and decay No growth
Resistance to fungus and decay (associated standard) AMS-DTL-7444
Logistic data
More Information
Delivery scope Thin wall heat shrinkable tube, on spool or in lengths
Shelf life description Unlimited shelf life
Country of origin Poland
Customs tariff number 39173200
EAN/GTIN 4010311201009
Packaging type Piece Bag1 Bag Pack Carton Pal. OW
Content quantity 1 1 10 10 100 1600
Unit of measure Piece Piece Piece Piece Piece Piece
Lenght (mm) 1000 1000 1020 1020 1100 1200
Width (mm) 80 80 195 195 400 800
Height (mm) 15 15 30 30 150 188
Net weight (kg) 0,114 0,114 1,14 1,14 11,4 182,4
Gross weight (kg) 0,114 0,114 1,14 1,14 12,145 212,52
