AK 16

Screw branch clamp Al-Cu
for cast resin straight-through and branch
Art. no.
446314
Inquiry
Add to Wish List

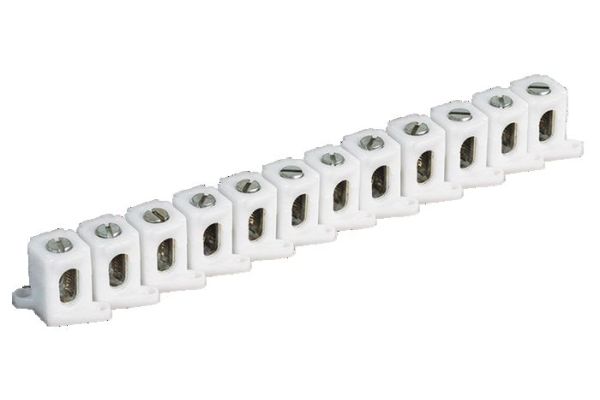

main product photo
More Information
Product family AK
Main description Screw branch clamp Al-Cu
Sub description for cast resin straight-through and branch
Family description Screw branch clamps suitable for connecting and branching aluminium and copper conductors.
Notes Main cable must not be cut.
Characteristics Brass clamp tin-plated, Divisible, Halogen-free
Technical data
More Information
Test standards EN 60998-2
Selection Note new
Nominal cross section solid main cable min 6 mm²
Nominal cross section solid main cable max 16 mm²
Nominal cross section solid branch cable min 6 mm²
Nominal cross section solid branch cable max 16 mm²
Nominal cross section stranded main cable min 4 mm²
Nominal cross section stranded main cable max 10 mm²
Nominal cross section stranded branch cable min 4 mm²
Nominal cross section stranded branch cable max 10 mm²
Tightening torque 2,5 Nm
Length L 24 mm
Width B 32 mm
Width B1 21 mm
Heigth H 26,25 mm
Diameter D 3,2 mm
Logistic data
More Information
Delivery scope 12 Screw branch clamps
Country of origin Spain
Customs tariff number 85369010
EAN/GTIN 4010311198521
Packaging type Piece Bag1 Pack
Content quantity 1 1 1
Unit of measure Piece Piece Piece
Lenght (mm) 24 400 400
Width (mm) 32 150 150
Height (mm) 27 50 50
Net weight (kg) 0,219 0,219 0,219
Gross weight (kg) 0,219 0,219 0,219
