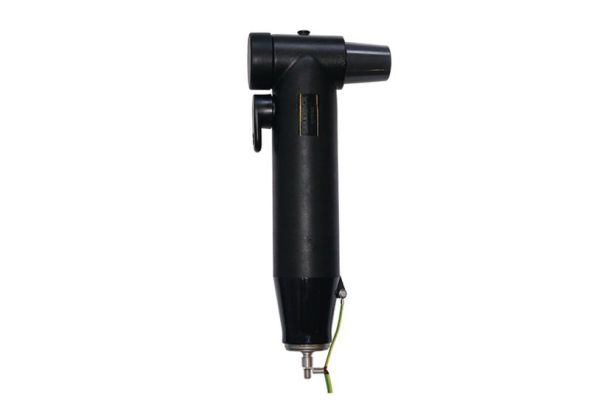

CTKSA 19,5 kV
Coupling surge arrester
Class DH for separable connector type CTS
Art. no.
423854
| Product family | CTKSA |
|---|---|
| Main description | Coupling surge arrester |
| Sub description | Class DH for separable connector type CTS |
| Family description | The Cellplux surge arrester CTKSA Class DH are designed to protect encapsulated medium voltage systems. The CTKSA coupling surge arresters are specifically designed for mounting on shielded, screw-type Cellpack cable connections and comply with the international standards IEC 60099-4 and IEC 60071. |
| Characteristics | With capacitive measuring point, Individually tested, Outer semi-conductive layer made of semi-conductive EPDM provides protection from exposed electrical parts, Quick, safe and easy assembly |
| Applications | Indoor, Outdoor |
| Rated discharge current, In | 10 kA |
|---|---|
| High current impulse 4/10 μs | 100 kA |
| Rated short-circuit current | 20 kA |
| Repetitive charge transfer rating, Qrs | 0,5 C |
| Thermal charge transfer rating, Qth | 1,1 C |
| Rated voltage, Ur | 24 kV |
| maximum continuous operating voltage, Uc | 19,5 kV |
| Residual voltage (IEC 60099-4) with steep current impulse (1/T, T < 20 \u001fs) | 68 kV |
| Residual voltage (IEC 60099-4) with lightning impulse 8/20 μs 5 kA | 59,6 kV |
| Residual voltage (IEC 60099-4) with lightning impulse 8/20 μs 10 kA | 64,4 kV |
| Residual voltage (IEC 60099-4) with lightning impulse 8/20 μs 20 kA | 70,4 kV |
| Length L | 290 m |
| Width B | 80 mm |
| Heigth H | 380 mm |
| Delivery scope | Set of 3 surge arresters, Assembly material, Assembly instructions | ||
|---|---|---|---|
| Shelf life description | Unlimited shelf life | ||
| Country of origin | Germany | ||
| Customs tariff number | 85479000 | ||
| EAN-UPC | 4010311193205 | ||
| Alternate quantity | 1 | 1 | 1 |
| Alternative unit of measure | Piece | Carton | Pal. OW |
| Base quantity | 1 | 1 | 24 |
| Base unit of measure | Piece | Piece | Piece |
| Lenght | 680 | 680 | 1200 |
| Width | 385 | 385 | 800 |
| Height | 115 | 115 | 1130 |
| Dimension unit | Millimetres | Millimetres | Millimetres |
| Volume | 30,107 | 30,107 | 1084,8 |
| Volume unit | Cubic decimetres | Cubic decimetres | Cubic decimetres |
| Net weight | 14,807 | 14,807 | 355,368 |
| Gross weight | 14,807 | 14,807 | 373,568 |
| Weight unit | Kilogram | Kilogram | Kilogram |
