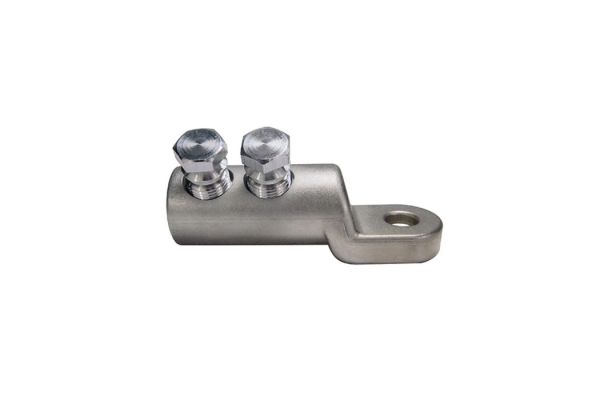

CSK 16-95
Screw cable lug for Cu and Al
longitudinally sealed for low and medium voltage
Art. no.
374491
Product family | CSK |
---|---|
Main description | Screw cable lug for Cu and Al |
Sub description | longitudinally sealed for low and medium voltage |
Family description | Screw cable lug for RM/SM/RE/SE aluminium and copper conductors, suitable for indoor and outdoor terminations. |
Notes | BBC Cellpack counter-holder recommended for installation (see Accessories)., Application according to AWG, ISWG and BWG standards on request. |
Applications | For connecting conductors RM/SM (class 2), RE/SE (class 1) according to DIN EN/IEC 60228 (VDE 0295) |
Test standards | IEC 61238-1 |
---|---|
Materials | Aluminium tin-plated |
Length L | 65 mm |
Length L1 | 30 mm |
Diameter D1 | 12,5 mm |
Diameter D2 | 13 mm |
Diameter D3 | 22 mm |
Number of bolts | 1 Pieces |
Delivery scope | Screw cable lug, Assembly instructions | ||
---|---|---|---|
Country of origin | Czech Republic | ||
Customs tariff number | 85369010 | ||
EAN/GTIN | 4010311185354 | ||
Packaging type | Piece | Bag1 | Carton |
Content quantity | 1 | 1 | 40 |
Unit of measure | Piece | Piece | Piece |
Lenght (mm) | 79 | 79 | 290 |
Width (mm) | 73 | 73 | 200 |
Height (mm) | 27 | 27 | 100 |
Net weight (kg) | 0,04 | 0,04 | 1,6 |
Gross weight (kg) | 0,04 | 0,04 | 1,9 |
