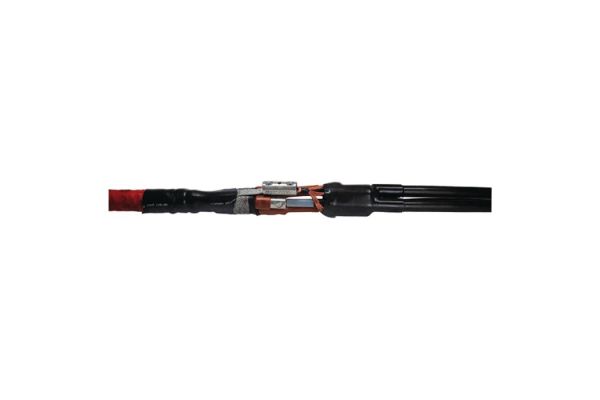

SMHSV3-1 120-240 MS6
3-core straight-through joint
for connecting with three 1-core polymeric cables up to 7.2 kV
Art. no.
369133
| Product family | SMHSV3-1...MS6 |
|---|---|
| Main description | 3-core straight-through joint |
| Sub description | for connecting with three 1-core polymeric cables up to 7.2 kV |
| Family description | Straight-through joints SMHSV3-1...MS6 are suitable for connecting 3-core polymeric cables (PVC, PE, XLPE, EPR) without outer semi-conductive layer with three 1-core polymeric cables (PVC, PE, XLPE, EPR). They allow the connection of cables with different cross sections, conductive materials and structure. With screw connectors. |
| Characteristics | Compact dimensions, Wide cross-section range, Ready for immediate operation, High mechanical strength, Quick, safe and easy assembly, Suitable for a wide range of applications due to integrated screw connector |
| Applications | Indoor, Outdoor, Underground, Water, Installation ducts |
| Voltage levels | U0/U (Um) 3,6/6 (7,2) kV - 3,8/6,6 (7,2) kV |
|---|---|
| Length L | 750 mm |
| Nominal cross section Polymeric cable unarmoured / armoured min | 120 mm² |
| Nominal cross section Polymeric cable unarmoured / armoured max | 240 mm² |
| Delivery scope | Thick wall heat shrinkable outer tube with hot melt adhesive, Inner sheath sleeve, Copper braid tape, Screw connector, Assembly material, Assembly instructions | ||
|---|---|---|---|
| Shelf life description | Unlimited shelf life | ||
| Country of origin | Germany | ||
| Customs tariff number | 39173900 | ||
| EAN/GTIN | 4010311179872 | ||
| Packaging type | Piece | Carton | Pal. OW |
| Content quantity | 1 | 1 | 12 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 865 | 865 | 1200 |
| Width (mm) | 369 | 369 | 800 |
| Height (mm) | 170 | 170 | 1130 |
| Net weight (kg) | 4,645 | 4,645 | 55,74 |
| Gross weight (kg) | 4,645 | 4,645 | 73,94 |
