EASYCELL 2

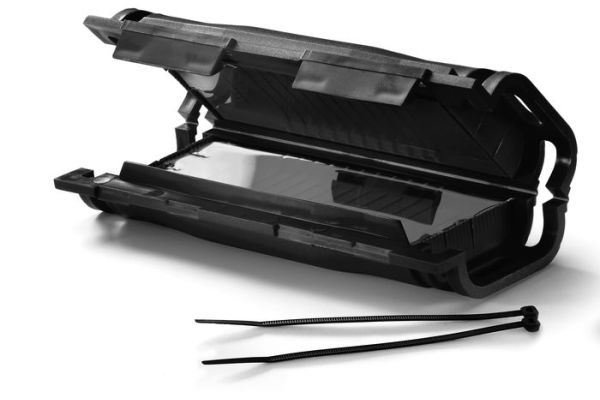

Gel straight-through joint
without connection block
Art. no.
360366
| Product family | EASYCELL |
|---|---|
| Main description | Gel straight-through joint |
| Sub description | without connection block |
| Family description | Universally suitable for connecting all polymeric cables and conductors (e.g. N(A)YY, NYM, H05), cross section range from 1.5 mm² to 25 mm². Suitable for aluminium and copper conductors. |
| Copyright | EASYCELL is a registered trademark of BBC Cellpack GmbH |
| Characteristics | Connector area completely sealed by gel, Re-accessible and ready for immediate operation, Multiple type of connectors can be used, e. g. terminal strips, push wire connectors, mechanical blocks and c-crimp connectors, High-quality shockproof plastic shells, flame retardant and UV-resistant, Quick, safe and easy assembly |
| Applications | Indoor (Laying in buildings and on cable racks), Outdoor, Underground, Water (according to test standard) |
| Voltage levels | U0/U (Um) 0,6/1 (1,2) kV |
|---|---|
| Test standards | EN 50393, EN 60695-2-11 |
| Housing type | 2 |
| Number of housing | 1 Pieces |
| Length L | 86 mm |
| Width B | 47 mm |
| Heigth H | 27 mm |
| Nominal cross section Polymeric cable unarmoured per conductor 3x min | 1,5 mm² |
| Nominal cross section Polymeric cable unarmoured per conductor 3x max | 2,5 mm² |
| Diameter cable min | 11 mm |
| Diameter cable max | 13 mm |
| Delivery scope | Gel straight-through joint, Cable ties, Assembly instructions | |||
|---|---|---|---|---|
| Shelf life description | Unlimited shelf life | |||
| Country of origin | Italy | |||
| Customs tariff number | 85369010 | |||
| EAN/GTIN | 4010311174563 | |||
| Alternative unit of measure | Piece | Case | Carton | Pal. OW |
| Base quantity | 1 | 1 | 250 | 4500 |
| Base unit of measure | Piece | Piece | Piece | Piece |
| Lenght (mm) | 112 | 112 | 410 | 1200 |
| Width (mm) | 29 | 29 | 380 | 800 |
| Height (mm) | 57 | 57 | 370 | 1300 |
| Net weight (kg) | 0,074 | 0,074 | 18,5 | 333 |
| Gross weight (kg) | 0,074 | 0,074 | 18,8 | 351,2 |
